Description
Brand - NADELLA
Item Number - BIC 3065 NADELLA
Also Known as - BI/C 3065
Category - Cylindrical Inner Rings with Holes for RNA Bearings

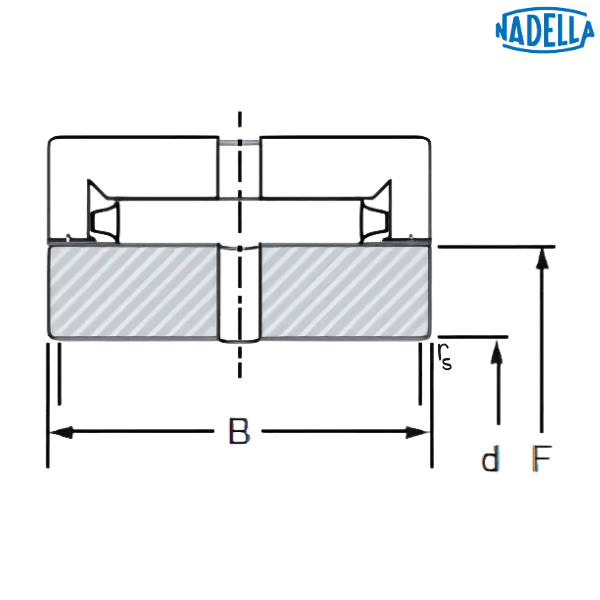

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 65 mm
Pitch Diameter (F) - 83.1 mm
Width(B) - 38 mm
Shaft Diameter(∅) - 65 mm
Minimum Chamfer Dimension(rs) - 2
Weight - 0.623 kg
Description of Prefix:
BIC - Cylindrical inner ring with and without lubrication hole for full complement needle bearings RNA series

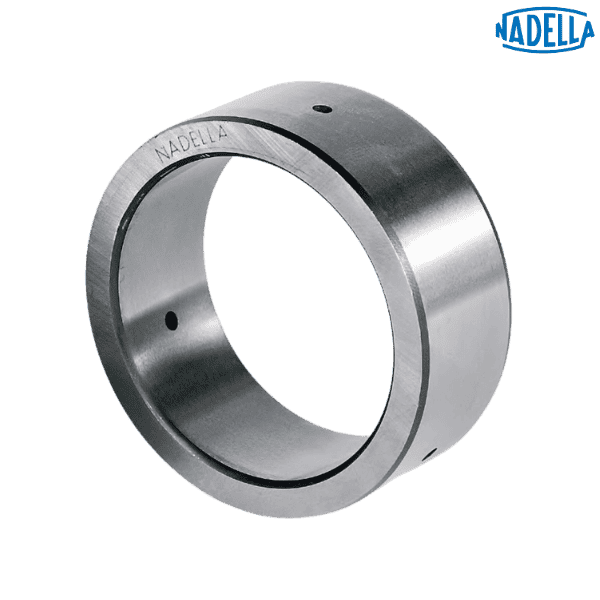

♦ ♦ Images are for representation purposes only
Item Number - BIC 3065 NADELLA
Also Known as - BI/C 3065
Category - Cylindrical Inner Rings with Holes for RNA Bearings
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 65 mm
Pitch Diameter (F) - 83.1 mm
Width(B) - 38 mm
Shaft Diameter(∅) - 65 mm
Minimum Chamfer Dimension(rs) - 2
Weight - 0.623 kg
Description of Prefix:
BIC - Cylindrical inner ring with and without lubrication hole for full complement needle bearings RNA series
♦ ♦ Images are for representation purposes only
