Description
Brand - NADELLA
Item Number - BIC 2015 NADELLA
Also Known as - BI/C 2015
Category - Cylindrical Inner Rings with Holes for RNA Bearings

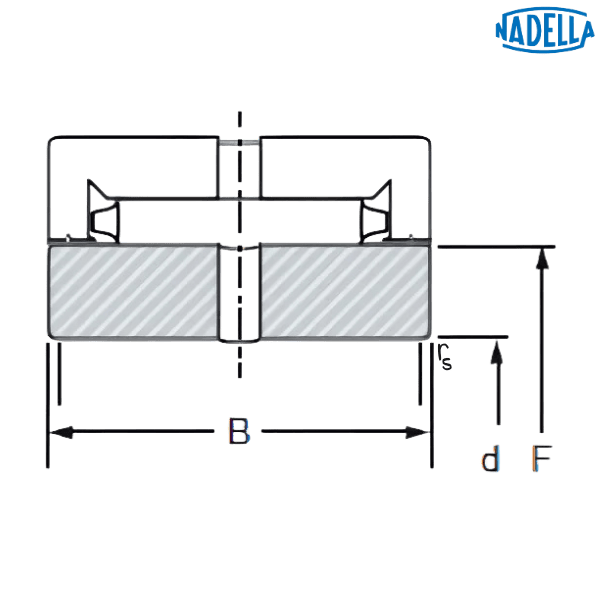

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 15 mm
Pitch Diameter (F) - 22.1 mm
Width(B) - 22 mm
Shaft Diameter(∅) - 15 mm
Minimum Chamfer Dimension(rs) - 1
Weight - 0.035 kg
Description of Prefix:
BIC - Cylindrical inner ring with and without lubrication hole for full complement needle bearings RNA series

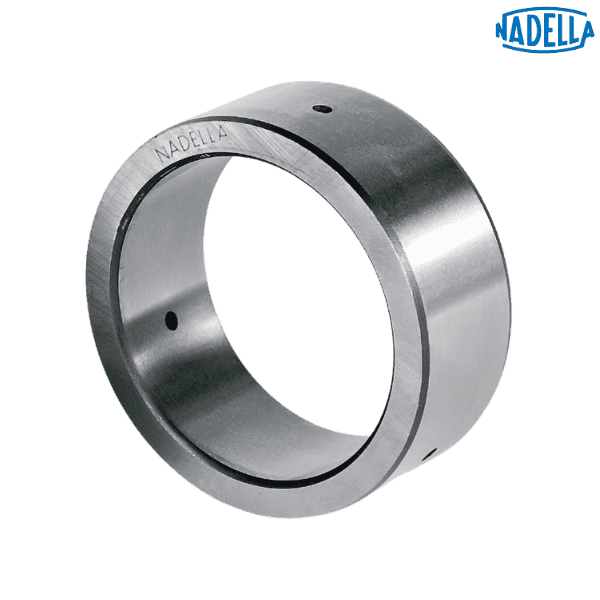

♦ ♦ Images are for representation purposes only
