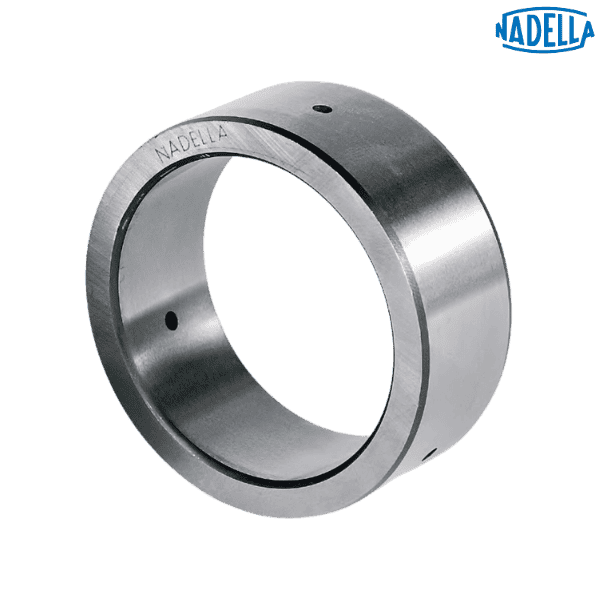

Description
Brand - NADELLA
Item Number - BIC 1045 NADELLA
Also Known as - BI/C 1045
Category - Cylindrical Inner Rings with Holes for RNA Bearings

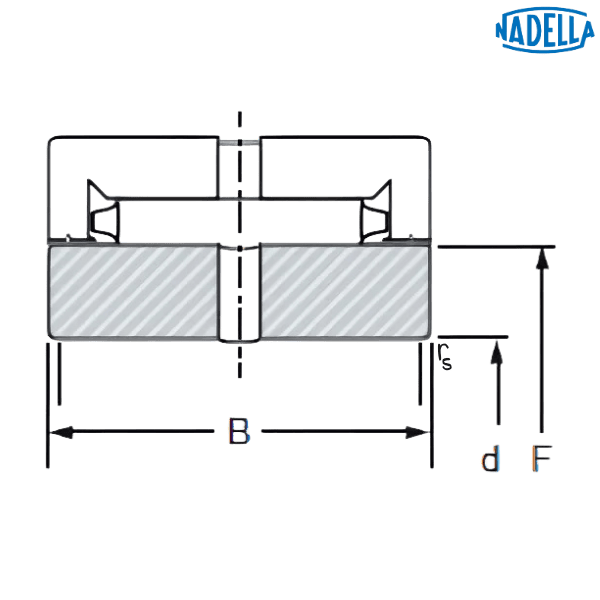

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 45 mm
Pitch Diameter (F) - 55.4 mm
Width(B) - 18 mm
Shaft Diameter(∅) - 45 mm
Minimum Chamfer Dimension(rs) - 1.5
Weight - 0.113 kg
Description of Prefix:
BIC - Cylindrical inner ring with and without lubrication hole for full complement needle bearings RNA series
♦ ♦ Images are for representation purposes only
