BIC 1040 NADELLA

Brand - NADELLA
Item Number - BIC 1040 NADELLA
Also Known as - BI/C 1040
Category - Cylindrical Inner Rings with Holes for RNA Bearings

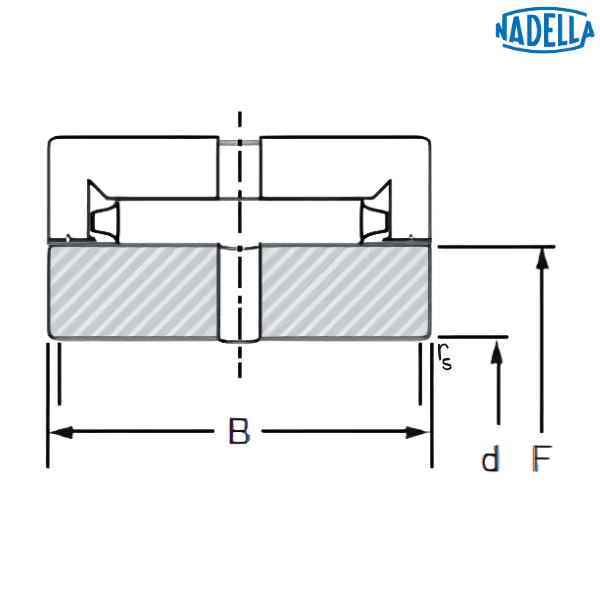

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 40 mm
Pitch Diameter (F) - 49.7 mm
Width(B) - 18 mm
Shaft Diameter(∅) - 40 mm
Minimum Chamfer Dimension(rs) - 1.5
Weight - 0.094 kg

Description of Prefix:

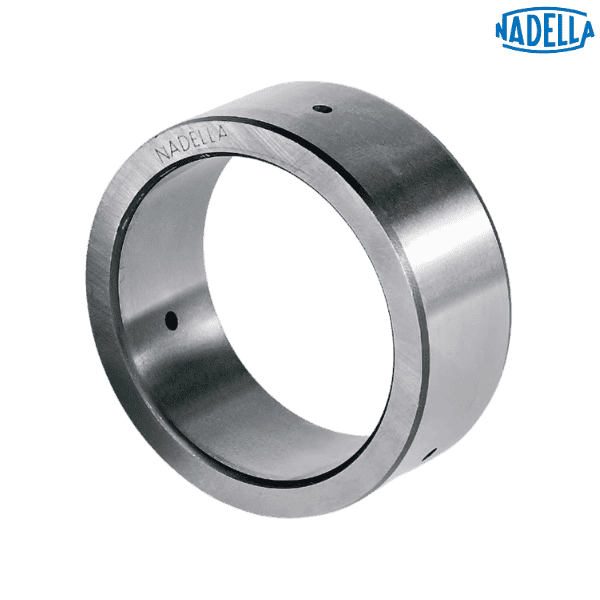

BIC - Cylindrical inner ring with and without lubrication hole for full complement needle bearings RNA series

♦ ♦ Images are for representation purposes only
