Description
Brand - RBC
Item Number - BH5660-L RBC
Category - High Misalignment Spherical Plain Bearings
Basic Part Number - (-5660)

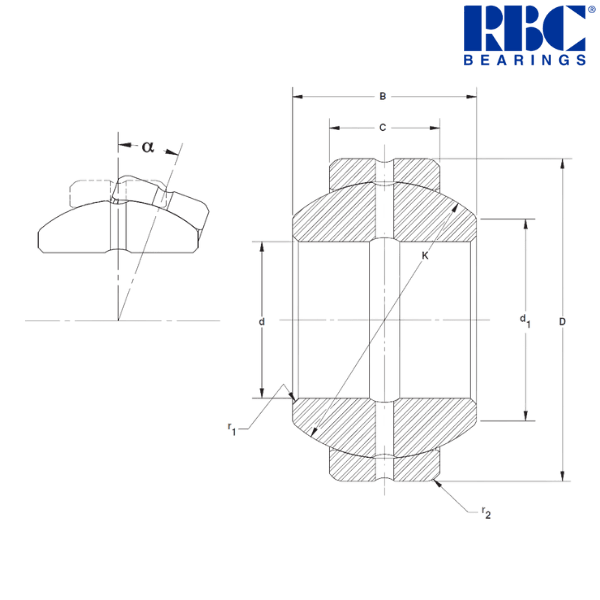

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 3.5 inch
Maximum Inside Diameter (d) - 3.5 inch
Minimum Inside Diameter (d) - 3.4992 inch
Nominal Outside Diameter (D) - 5.875 inch
Maximum Outside Diameter (D) - 5.875 inch
Minimum Outside Diameter (D) - 5.874 inch
Inner Ring Width (B) - 3.56 inch
Outer Ring Width (C) - 2.812 inch
Sphere Diameter (K) - 5.39 inch
Unmounted Diametral Clearance - 0.005/0.009 inch
Shaft Shoulder Diameter (d1) - 4.1 inch
Tilt Angle (α) - 14°
Maximum Shaft Fillet (r1) - 0.08 inch
Maximum Housing Fillet (r2) - 0.032 inch
Approximate Weight - 15 lbs
Static Radial Load Limit - 530400 lbf
Static Thrust Load Limit - 126100 lbf
Static Dynamic Load Limit - 132600 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 3.4986 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 3.4977 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 3.5011 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 3.5005 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 5.8731 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 5.8715 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 6.803 kg
Notes about BH....L Series :
Thanks to a thicker inner ring, the BH-L and MBH series can accommodate increased misalignment. These bearings are offered in both open and sealed versions, with options in inch and metric sizes.
Other salient points to be noted :
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.
♦ ♦ Images are for representation purposes only
