Description
Brand - INA
Item Number - BF5032 INA
Category - Radial Needle Roller and Cage Assemblies
Weight (kg/m) - 0.722

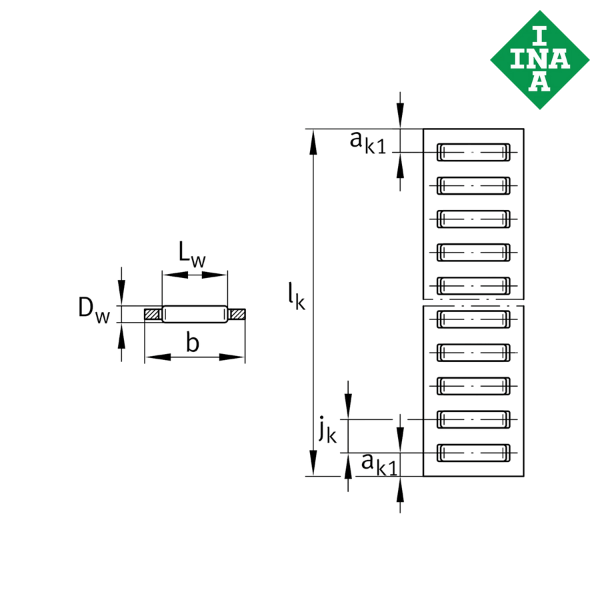

Dimension (b) mm - 32
Minimum Possible Shaft Diameter (d min) mm - 180
Maximum Possible Shaft Diameter (d max) mm - 1000
Rolling Element Diameter (Dw) mm - 5
Length Rolling Element (Lw) mm - 27.8
Dimension (jk) mm - 8
Dimension (ak1) mm - 5.5

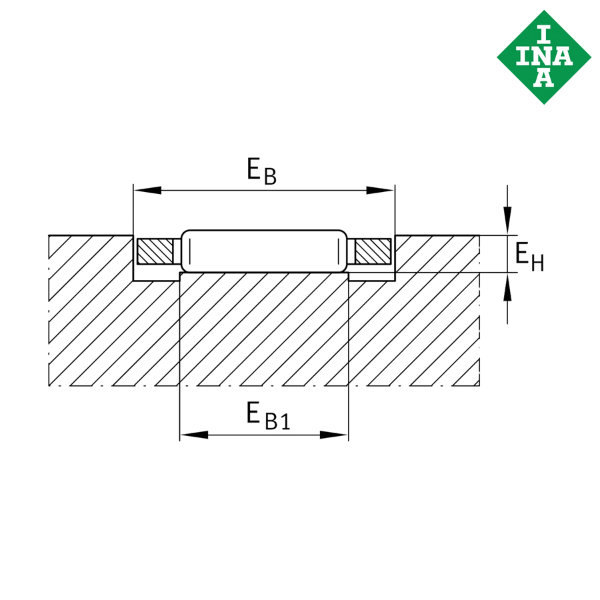

Mounting Dimension (EB) mm - 32.5
Tolerance (EB) - +0.2
Minimum Mounting Dimension (EB1) mm - 28
Dimension (EH) mm - 4.6
Basic Dynamic Load Rating (Cr) N - 9600·√d
Basic Static Load Rating (C0r) N - 2350·d

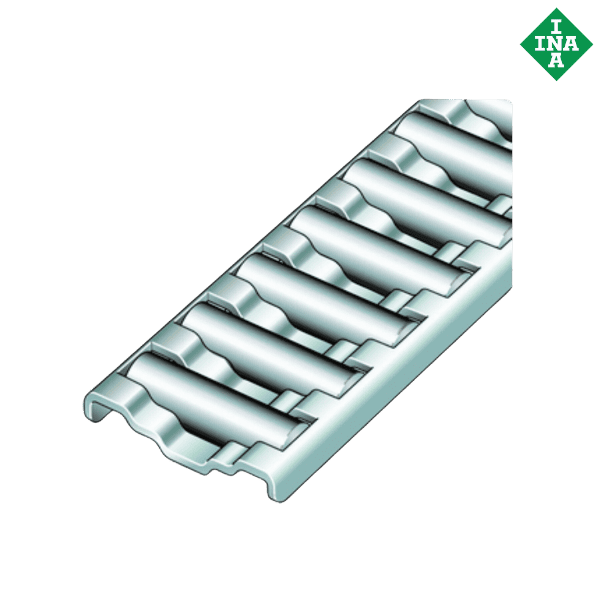

** Images are for representation purposes only
