BF12040 INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - BF12040 INA
Category - Finished Radial Needle Roller and Cage Assemblies After Bending
Weight (kg/m) - 1.97
Dimension (b) mm - 40
Minimum Possible Shaft Diameter (d min) mm - 160
Maximum Possible Shaft Diameter (d max) mm - 1000
Rolling Element Diameter (Dw) mm - 12
Length Rolling Element (Lw) mm - 36
Dimension (jk) mm - 16
Dimension (ak1) mm - 10

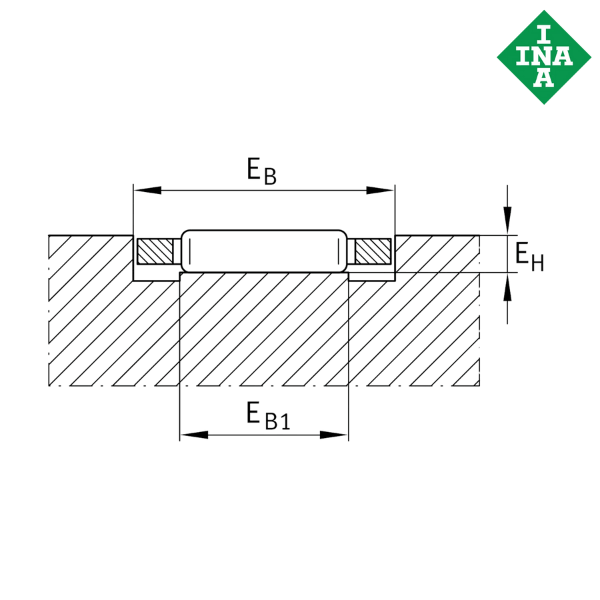

Mounting Dimension (EB) mm - 40.5
Tolerance (EB) - +0.2
Minimum Mounting Dimension (EB1) mm - 36
Dimension (EH) mm - 11
Basic Dynamic Load Rating (Cr) N - 21800·√d
Basic Static Load Rating (C0r) N - 3650·d

** Images are for representation purposes only
