Description
Brand - SKF

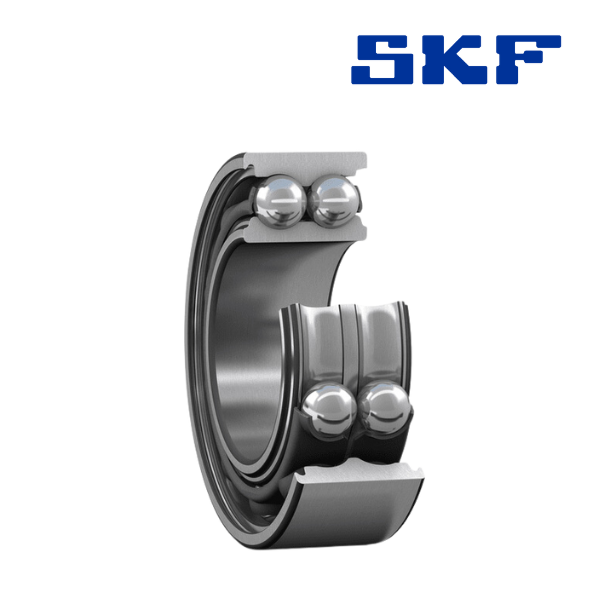

Item Number - BAH0109C SKF
Category - Angular Contact Ball Bearing Double Row
Inner (d) MM - 38.993
Outer (D) MM - 72.043
Width (B) MM - 38.993
Inner (d) Inch - 1.5352
Outer (D) Inch - 2.8363
Width (B) Inch - 1.5352
Weight (kg) - 0.6
Bore - C - Cylindrical Bore
Seal - ZZ/2Z - Steel Seal on Two Sides
Cage Type - S - Steel or Standard Cage
External Modification - No External Modification
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Lubrication - Standard Lubrication
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Split Inner ring / Outer ring - Split innerring
