BA 100 UX RINGSPANN

Brand - RINGSPANN
Part Number - BA 100 UX RINGSPANN
Category - Complete Freewheels BA

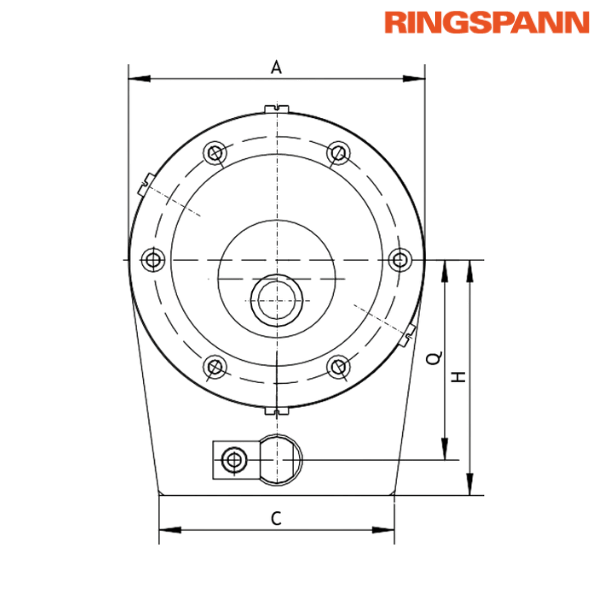

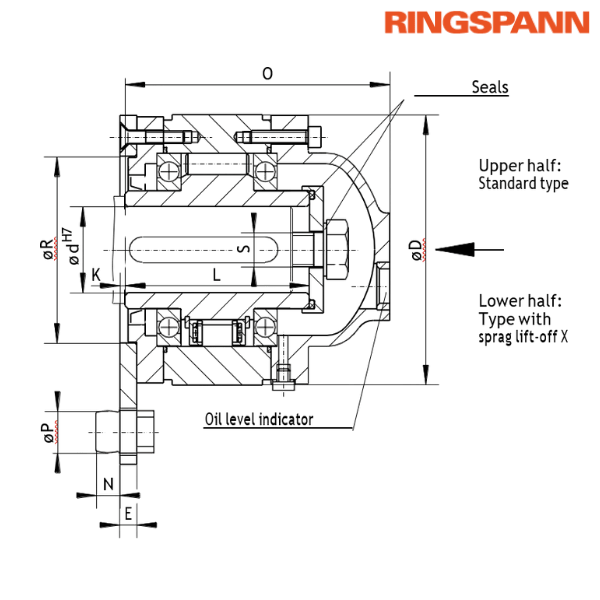

Principal Dimensions & Specifications (Metric):
Standard Bore Diameter (d) - 150 mm
Maximum Bore Diameter (d) - 150 mm
Dimension (A) - 420 mm
Dimension (C) - 380 mm
Dimension (D) - 411 mm
Dimension (E) - 45 mm
Dimension (H) - 345 mm
Dimension (K) - 31.5 mm
Dimension (L) - 276 mm
Dimension (N) - 60 mm
Dimension (O) - 372 mm
Dimension (P) - 80 mm
Dimension (Q) - 280 mm
Dimension (R) - 270 mm
Thread for Screw (S) - M30
Weight - 260 kg
Type - Type with Sprag Lift-off X for Extended Service Life Using Sprag Lift-off at High Speed Rotating Inner Ring (UX)
Nominal Torque (M_N) - 42500 Nm
Sprag Lift-off at Inner Ring Speed - 210 RPM
Maximum Speed of Inner Ring Freewheels - 750 RPM

Description of Suffix:
UX - Type with Sprag Lift-off X for Extended Service Life Using Sprag Lift-off at High Speed Rotating Inner Ring

Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• Tolerance of keyway width JS10
• Keyway according to DIN 6885

Features:
• Handles nominal torques up to 57,500 Nm
• Available with bores up to 150 mm

Application as: Backstop

Application Example:
• Complete Freewheel BA 45 SX is used as a backstop, mounted at the end of the intermediate shaft of a spur gearbox
• For high shaft speeds during normal (freewheeling) operation, the sprag lift-off type X is used

Mounting:
• The holding pin should allow 0.5 to 2 mm play in both axial and radial directions
• Removing the holding pin enables the shaft to rotate freely in both directions
• The shaft tolerance must conform to ISO h6 or j6

♦ ♦ Images are for representation purposes only
