Description
Brand - ZEN
Item Number - B9 ZEN
Category - Three Part Thrust Series
Inner ring dimension (d) mm - 9
Outer ring dimension (D) mm - 20
Width (B) mm - 7
Dynamic Load Rating (N) - 2400
Static Load Rating (N) - 3190
Limiting Speed (Oil) - 8
Weight (kg) - 0.002
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

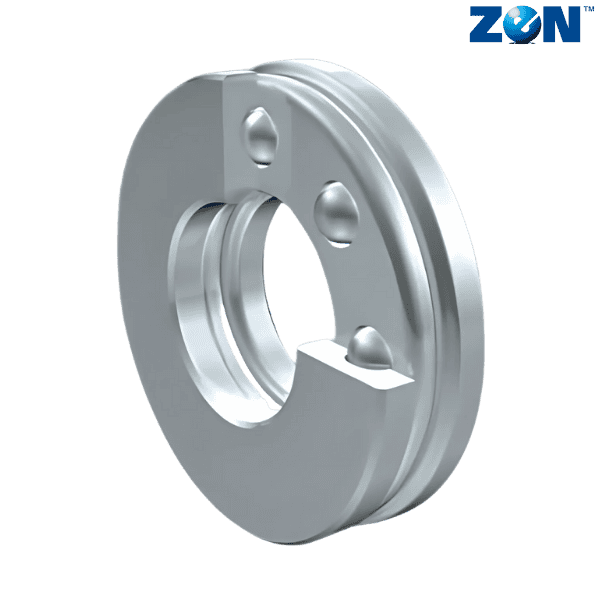

** Images are for representation purposes only
