Description
Brand - RBC
Item Number - B72-E9L RBC
Category - Spherical Plain Bearing with Extended Inner Ring
Basic Part Number - (-72)

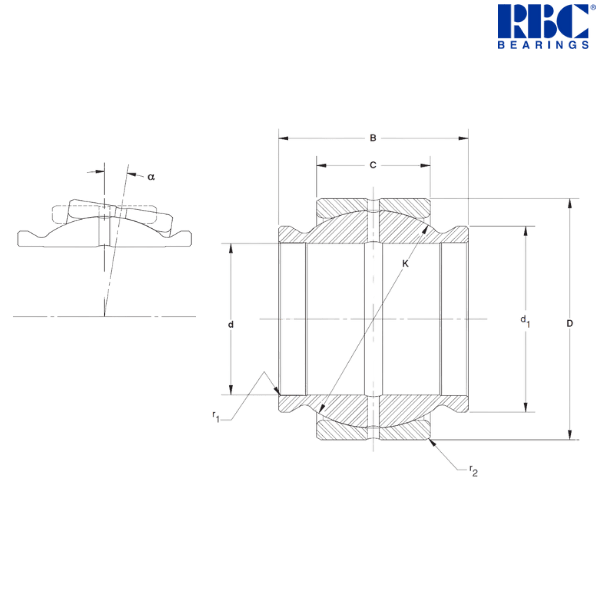

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 4.5 inch
Maximum Inside Diameter (d) - 4.5 inch
Minimum Inside Diameter (d) - 4.4992 inch
Nominal Outside Diameter (D) - 7 inch
Maximum Outside Diameter (D) - 7 inch
Minimum Outside Diameter (D) - 6.999 inch
Inner Ring Width (B) - 6.75 inch
Outer Ring Width (C) - 3.375 inch
Sphere Diameter (K) - 6.475 inch
Unmounted Diametral Clearance - 0.005/0.009 inch
Shaft Shoulder Diameter (d1) - 5.525 inch
Tilt Angle (α) - 7°
Maximum Shaft Fillet (r1) - 0.032 inch
Maximum Housing Fillet (r2) - 0.044 inch
Approximate Weight - 27 lbs
Static Radial Load Limit - 764800 lbf
Static Thrust Load Limit - 290400 lbf
Static Dynamic Load Limit - 191200 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 4.4986 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 4.4977 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 4.5011 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 4.5005 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 6.9979 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 6.9963 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 12.245 kg
Notes about B....EL Series :
The extended inner ring design removes the need for extra locational spacers. Additionally, the inner ring bore is relieved to minimize bending stress. These bearings come in both open and sealed versions, and are offered in inch or metric sizes.
Other salient points to be noted :
• Outer rings of bearings size 72 and above are double fractured (suffix-9L).
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.
♦ ♦ Images are for representation purposes only
