B72-9LNMSS RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - B72-9LNMSS RBC
Category - DuraLube Self-Lubricating, Maintenance-Free Spherical Plain Bearing
Basic Part Number - (-72)

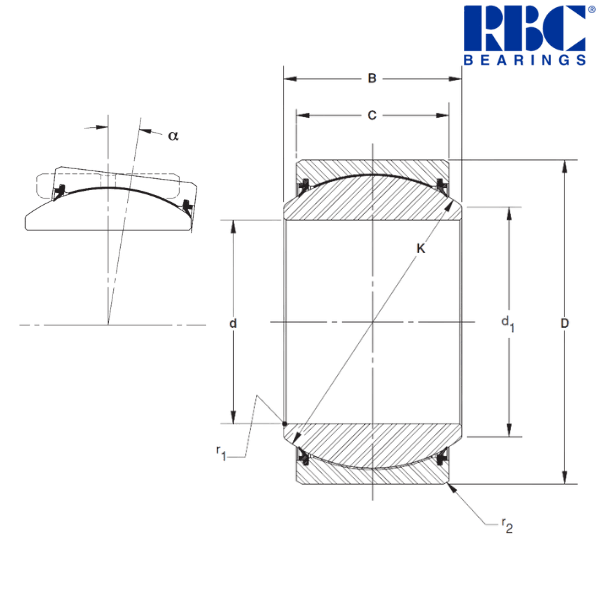

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 4.5 inch
Maximum Inside Diameter (d) - 4.5 inch
Minimum Inside Diameter (d) - 4.4992 inch
Nominal Outside Diameter (D) - 7 inch
Maximum Outside Diameter (D) - 7 inch
Minimum Outside Diameter (D) - 6.999 inch
Inner Ring Width (B) - 3.937 inch
Outer Ring Width (C) - 3.375 inch
Sphere Diameter (K) - 6.475 inch
Unmounted Diametral Clearance - 0.005/0.009 inch
Shaft Shoulder Diameter (d1) - 5.125 inch
Tilt Angle (α) - 7°
Maximum Shaft Fillet (r1) - 0.032 inch
Maximum Housing Fillet (r2) - 0.044 inch
Approximate Weight - 21.92 lbs
Static Radial Load Limit - 576923 lbf
Static Thrust Load Limit - 96954 lbf
Static Dynamic Load Limit - 384615 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 4.4986 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 4.4977 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 4.5011 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 4.5005 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 6.9994 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 6.9978 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 9.941 kg

Notes about B....LNMSS Series :

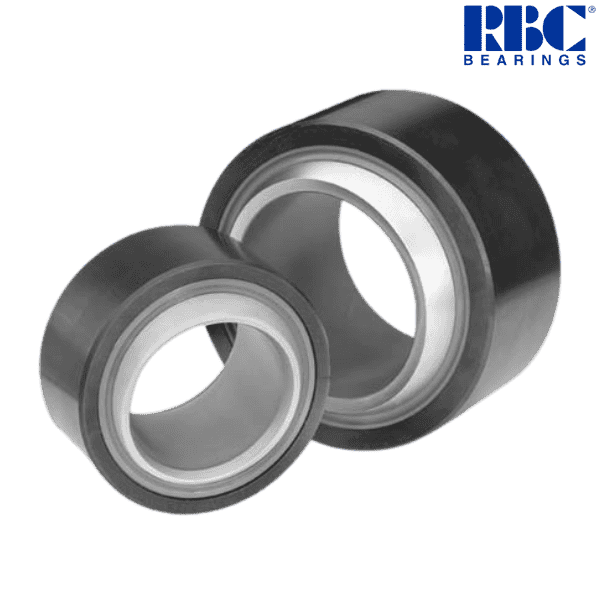

RBC's DuraLube™ self-lubricating spherical plain bearings are built for long-lasting performance in tough environments. They operate without grease, using a robust PTFE liner system that minimizes friction between the inner and outer spherical surfaces. These bearings are perfect for situations where re-lubrication isn't feasible but extended service life is essential. They are available in both inch and metric sizes.

Other salient points to be noted :
• Outer rings of bearings size 72 and above are double fractured (suffix-9L).
• Ultimate static and impact loads should not exceed 150% of catalog ratings.
