Description
Brand - RBC
Item Number - B60LDLPTS RBC
Category - Duralube Maintenance Free Spherical Plain Bearings

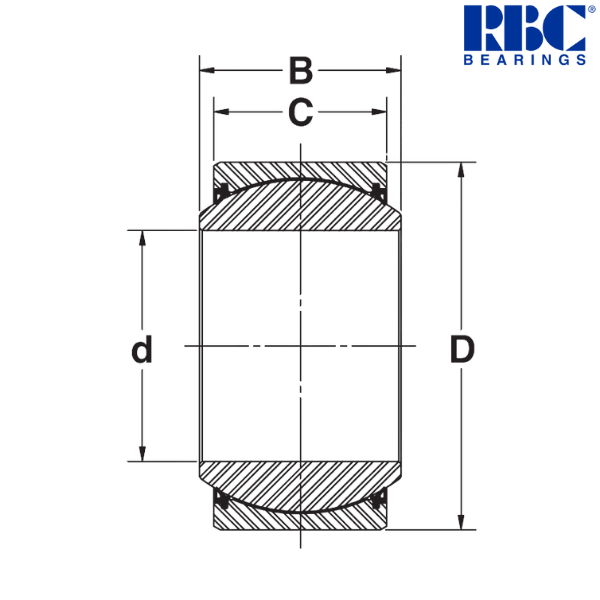

Principal Dimensions & Load Ratings (Imperial) :
Inner Diameter (d) - 3.75 inch
Outer Diameter (D) - 5.875 inch
Width of Inner Ring (B) - 3.281 inch
Width of Outer Ring (B) - 2.812 inch
Static Radial Load - 636581 lbf
Static Thrust Load - 118553 lbf
Dynamic Radial Load - 318290 lbf
Other salient points to be noted :
• DLP is RBC’s DuraLube™ II Plus Liner System.
• Ultimate static and impact loads should not exceed 150% of catalogue ratings.
♦ ♦ Images are for representation purposes only
