Description
Brand - RBC
Item Number - B60-EL RBC
Category - Spherical Plain Bearing with Extended Inner Ring
Basic Part Number - (-60)

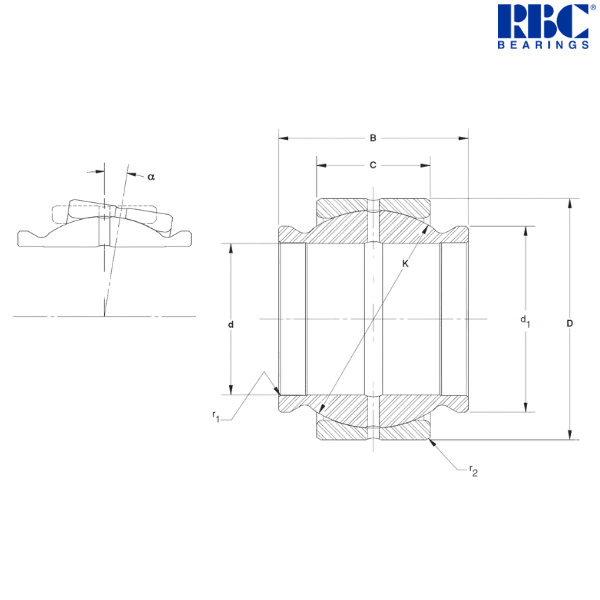

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 3.75 inch
Maximum Inside Diameter (d) - 3.75 inch
Minimum Inside Diameter (d) - 3.7492 inch
Nominal Outside Diameter (D) - 5.875 inch
Maximum Outside Diameter (D) - 5.875 inch
Minimum Outside Diameter (D) - 5.874 inch
Inner Ring Width (B) - 5.625 inch
Outer Ring Width (C) - 2.812 inch
Sphere Diameter (K) - 5.39 inch
Unmounted Diametral Clearance - 0.005/0.009 inch
Shaft Shoulder Diameter (d1) - 4.59 inch
Tilt Angle (α) - 9°
Maximum Shaft Fillet (r1) - 0.022 inch
Maximum Housing Fillet (r2) - 0.032 inch
Approximate Weight - 15.7 lbs
Static Radial Load Limit - 530400 lbf
Static Thrust Load Limit - 126100 lbf
Static Dynamic Load Limit - 132600 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 3.7486 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 3.7477 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 3.7511 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 3.7505 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 5.8731 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 5.8715 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 7.12 kg
Notes about B....EL Series :
The extended inner ring design removes the need for extra locational spacers. Additionally, the inner ring bore is relieved to minimize bending stress. These bearings come in both open and sealed versions, and are offered in inch or metric sizes.
Other salient points to be noted :
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.
♦ ♦ Images are for representation purposes only
