Description
Brand - RBC
Item Number - B56-SA RBC
Category - Spherical Plain Angular Contact Bearings (Single Acting)
Basic Part Number - (-56)
Outer Ring Part Number - ORB56-SA
Inner Ring Part Number - IRB56-SA

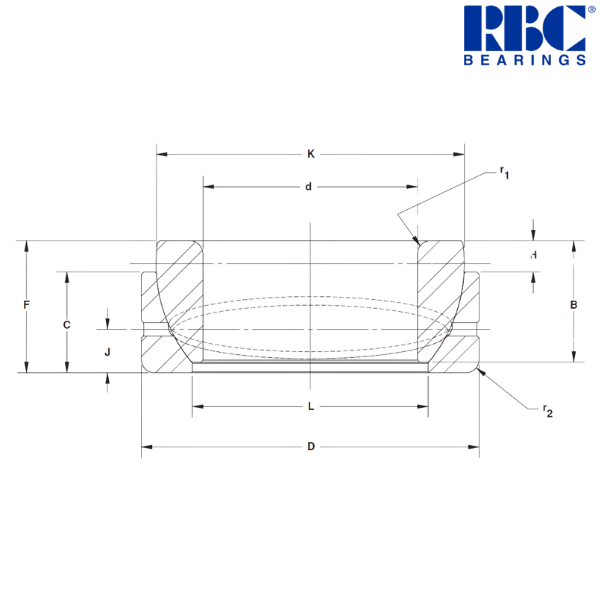

Principal Dimensions & Load Ratings (Imperial) :
Nominal Diameter of Inner Ring (d) - 3.5 inch
Maximum Diameter of Inner Ring (d) - 3.5 inch
Minimum Diameter of Inner Ring (d) - 3.4992 inch
Nominal Outside Diameter (D) - 5.5 inch
Maximum Outside Diameter (D) - 5.5 inch
Minimum Outside Diameter (D) - 5.499 inch
Overall Width (F) - 2.18 (+0.000 to -0.025) inch
Inner Ring Width (B) - 2 (+0.000 to -0.005) inch
Outer Ring Width (C) - 1.675 (+0.000 to -0.005) inch
Sphere Diameter (K) - 5.04 inch
End to Hole (J) - 0.703 inch
Loc. Sphere Diameter (H) - 0.38 inch
Outer Ring Bore (L) - 3.85 inch
Maximum Shaft Fillet (r1) - 0.18 inch
Maximum Housing Fillet (r2) - 0.18 inch
Approximate Weight - 7.87 lbs
Static Radial Load Limit - 263700 lbf
Static Thrust Load Limit - 290800 lbf
Dynamic Radial Load Limit - 65900 lbf
Dynamic Thrust Load Limit - 72700 lbf
Maximum Recommended Shaft Diameter ISO g6 (Slip Fit) - 3.4995 inch
Minimum Recommended Shaft Diameter ISO g6 (Slip Fit) - 3.4986 inch
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 3.5011 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 3.5005 inch
Maximum Housing Bore ISO N7 (Press Fit) - 5.4994 inch
Minimum Housing Bore ISO N7 (Press Fit) - 5.4978 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 3.569 kg
Notes about B....Sa Series :
These bearings are engineered to handle heavy one-directional thrust loads as well as combined radial and thrust loads. They come standard with elliptical lubrication grooves for enhanced performance and are available in both inch and metric sizes.
Other salient points to be noted :
• Bore dimensions are after MoS2 coating. All other dimensions are before coating.
• For bearings with grooves extended to the face of the outer ring at two places, add suffix “-1”, e.g. B32SA-1
• Ultimate static and impact loads should not exceed 150% of catalog ratings.
♦ ♦ Images are for representation purposes only
