Description
Brand - RBC
Item Number - B52-ELSS RBC
Category - Spherical Plain Bearing with Extended Inner Ring
Basic Part Number - (-52)

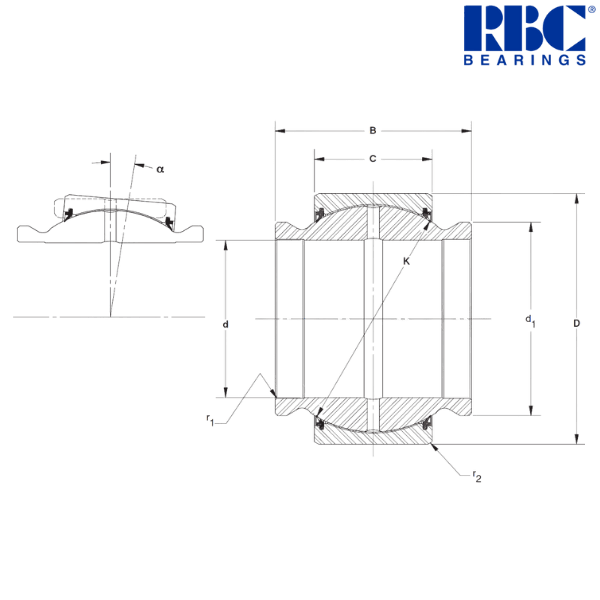

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 3.25 inch
Maximum Inside Diameter (d) - 3.25 inch
Minimum Inside Diameter (d) - 3.2492 inch
Nominal Outside Diameter (D) - 5.125 inch
Maximum Outside Diameter (D) - 5.125 inch
Minimum Outside Diameter (D) - 5.124 inch
Inner Ring Width (B) - 4.875 inch
Outer Ring Width (C) - 2.437 inch
Sphere Diameter (K) - 4.675 inch
Unmounted Diametral Clearance - 0.005/0.009 inch
Shaft Shoulder Diameter (d1) - 3.985 inch
Tilt Angle (α) - 5°
Maximum Shaft Fillet (r1) - 0.022 inch
Maximum Housing Fillet (r2) - 0.032 inch
Approximate Weight - 10.3 lbs
Static Radial Load Limit - 398700 lbf
Static Thrust Load Limit - 91500 lbf
Static Dynamic Load Limit - 99600 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 3.2486 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 3.2477 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 3.2511 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 3.2505 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 5.1231 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 5.1215 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 4.671 kg
Notes about B....EL Series :
The extended inner ring design removes the need for extra locational spacers. Additionally, the inner ring bore is relieved to minimize bending stress. These bearings come in both open and sealed versions, and are offered in inch or metric sizes.
Other salient points to be noted :
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.
♦ ♦ Images are for representation purposes only
