Description
Brand - RBC
Item Number - B44LDLPTS RBC
Category - Duralube Maintenance Free Spherical Plain Bearings

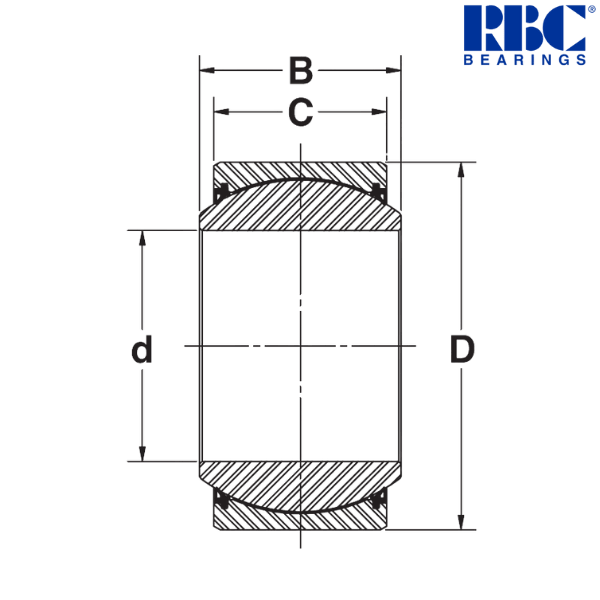

Principal Dimensions & Load Ratings (Imperial) :
Inner Diameter (d) - 2.75 inch
Outer Diameter (D) - 4.375 inch
Width of Inner Ring (B) - 2.406 inch
Width of Outer Ring (B) - 2.062 inch
Static Radial Load - 342086 lbf
Static Thrust Load - 63836 lbf
Dynamic Radial Load - 171043 lbf
Other salient points to be noted :
• DLP is RBC’s DuraLube™ II Plus Liner System.
• Ultimate static and impact loads should not exceed 150% of catalogue ratings.

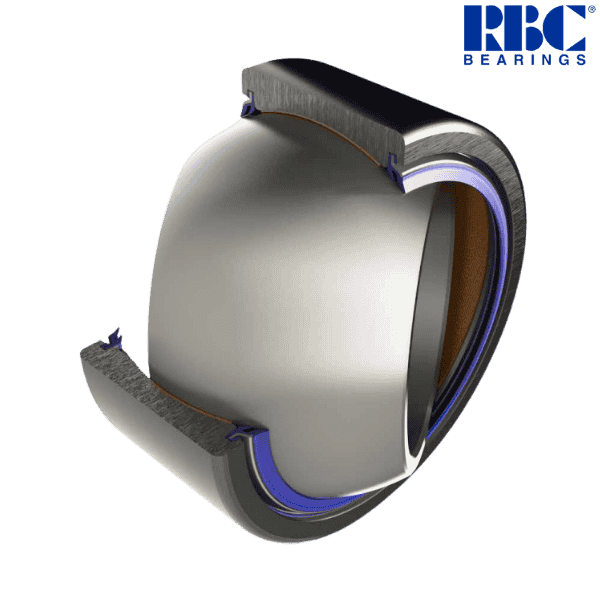

♦ ♦ Images are for representation purposes only
