Description
Brand - RBC
Item Number - B40-LSSQ RBC
Category - QuadLube® Long Life Spherical Plain Bearings
Basic Part Number - (-40)
Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 2.5 inch
Maximum Inside Diameter (d) - 2.5 inch
Minimum Inside Diameter (d) - 2.4994 inch
Nominal Outside Diameter (D) - 3.9375 inch
Maximum Outside Diameter (D) - 3.9375 inch
Minimum Outside Diameter (D) - 3.9367 inch
Inner Ring Width (B) - 2.187 inch
Outer Ring Width (C) - 1.875 inch
Sphere Diameter (K) - 3.59 inch
Unmounted Diametral Clearance - 0.004/0.008 inch
Shaft Shoulder Diameter (d1) - 2.844 inch
Tilt Angle (α) - 7°
Maximum Shaft Fillet (r1) - 0.022 inch
Maximum Housing Fillet (r2) - 0.032 inch
Approximate Weight - 4.09 lbs
Static Radial Load Limit - 235500 lbf
Static Thrust Load Limit - 52900 lbf
Static Dynamic Load Limit - 58800 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 2.4988 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 2.4981 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 2.501 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 2.5005 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 3.9359 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 3.9345 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.855 kg
Notes about B....LSSQ Series :
An advanced lubrication system delivers up to 300% longer service life. This patented design ensures consistent lubrication in the load zone, even without load reversal, and enables relubrication while the bearing is still under load. These bearings extend operational life in challenging applications and are available in both inch and metric sizes.
Other salient points to be noted :
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.

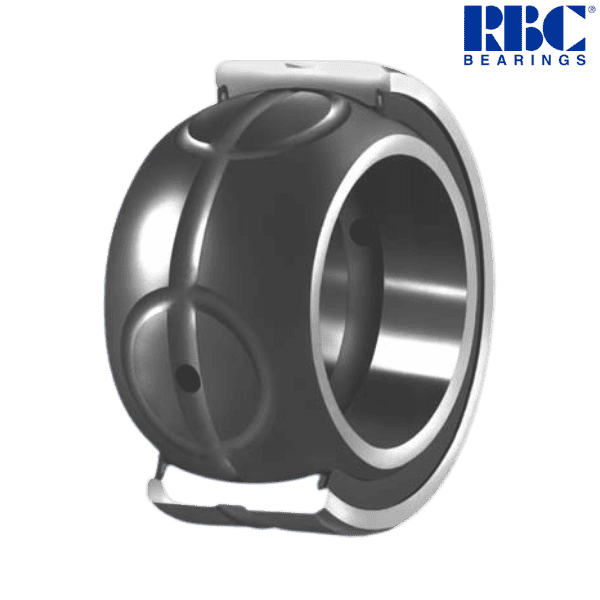

♦ ♦ Images are for representation purposes only
