Description
Brand - RBC
Item Number - B36-LSSQ RBC

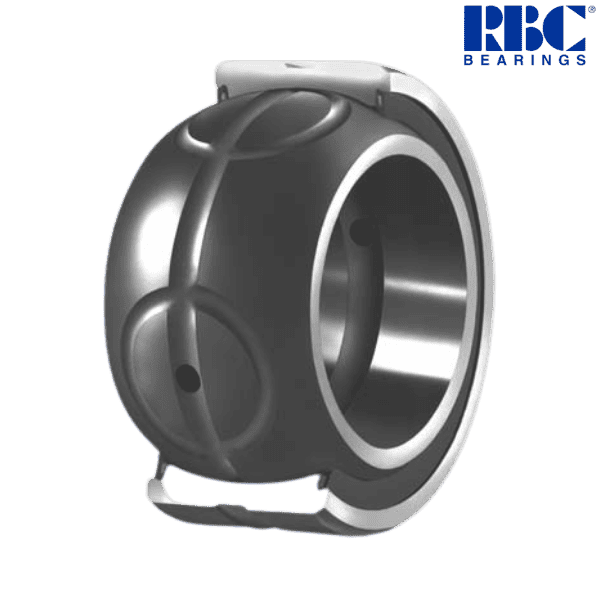

Category - QuadLube® Long Life Spherical Plain Bearings
Basic Part Number - (-36)
Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 2.25 inch
Maximum Inside Diameter (d) - 2.25 inch
Minimum Inside Diameter (d) - 2.2494 inch
Nominal Outside Diameter (D) - 3.5625 inch
Maximum Outside Diameter (D) - 3.5625 inch
Minimum Outside Diameter (D) - 3.5617 inch
Inner Ring Width (B) - 1.969 inch
Outer Ring Width (C) - 1.687 inch
Sphere Diameter (K) - 3.235 inch
Unmounted Diametral Clearance - 0.004/0.008 inch
Shaft Shoulder Diameter (d1) - 2.563 inch
Tilt Angle (α) - 7°
Maximum Shaft Fillet (r1) - 0.022 inch
Maximum Housing Fillet (r2) - 0.032 inch
Approximate Weight - 2.92 lbs
Static Radial Load Limit - 191000 lbf
Static Thrust Load Limit - 42000 lbf
Static Dynamic Load Limit - 47700 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 2.2488 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 2.2481 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 2.251 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 2.2505 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 3.561 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 3.5596 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.324 kg
Notes about B....LSSQ Series :
An advanced lubrication system delivers up to 300% longer service life. This patented design ensures consistent lubrication in the load zone, even without load reversal, and enables relubrication while the bearing is still under load. These bearings extend operational life in challenging applications and are available in both inch and metric sizes.
Other salient points to be noted :
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.
♦ ♦ Images are for representation purposes only
