Description
Brand - RBC
Item Number - B28-SA RBC
Category - Spherical Plain Angular Contact Bearings (Single Acting)
Basic Part Number - (-28)
Outer Ring Part Number - ORB28-SA
Inner Ring Part Number - IRB28-SA

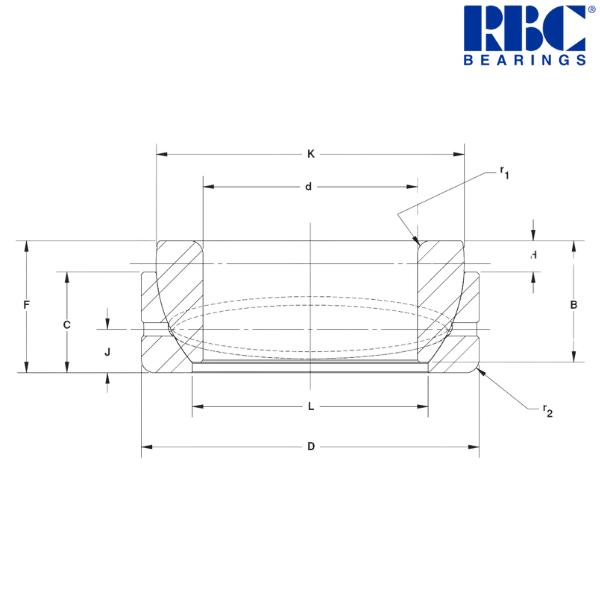

Principal Dimensions & Load Ratings (Imperial) :
Nominal Diameter of Inner Ring (d) - 1.75 inch
Maximum Diameter of Inner Ring (d) - 1.75 inch
Minimum Diameter of Inner Ring (d) - 1.7495 inch
Nominal Outside Diameter (D) - 2.8125 inch
Maximum Outside Diameter (D) - 2.8125 inch
Minimum Outside Diameter (D) - 2.8119 inch
Overall Width (F) - 1.07 (+0.000 to -0.025) inch
Inner Ring Width (B) - 0.98 (+0.000 to -0.005) inch
Outer Ring Width (C) - 0.79 (+0.000 to -0.005) inch
Sphere Diameter (K) - 2.515 inch
End to Hole (J) - 0.328 inch
Loc. Sphere Diameter (H) - 0.19 inch
Outer Ring Bore (L) - 1.95 inch
Maximum Shaft Fillet (r1) - 0.1 inch
Maximum Housing Fillet (r2) - 0.1 inch
Approximate Weight - 1.01 lbs
Static Radial Load Limit - 61600 lbf
Static Thrust Load Limit - 69300 lbf
Dynamic Radial Load Limit - 15400 lbf
Dynamic Thrust Load Limit - 17300 lbf
Maximum Recommended Shaft Diameter ISO g6 (Slip Fit) - 1.7496 inch
Minimum Recommended Shaft Diameter ISO g6 (Slip Fit) - 1.749 inch
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 1.7508 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 1.7504 inch
Maximum Housing Bore ISO N7 (Press Fit) - 2.8122 inch
Minimum Housing Bore ISO N7 (Press Fit) - 2.811 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.458 kg
Notes about B....Sa Series :
These bearings are engineered to handle heavy one-directional thrust loads as well as combined radial and thrust loads. They come standard with elliptical lubrication grooves for enhanced performance and are available in both inch and metric sizes.
Other salient points to be noted :
• Bore dimensions are after MoS2 coating. All other dimensions are before coating.
• For bearings with grooves extended to the face of the outer ring at two places, add suffix “-1”, e.g. B32SA-1
• Ultimate static and impact loads should not exceed 150% of catalog ratings.
♦ ♦ Images are for representation purposes only
