Description
Brand - RBC
Item Number - B192-9L RBC
Category - Radial spherical Plain Bearing
Basic Part Number - (-192)
Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 12.0 inch
Maximum Inside Diameter (d) - 12 inch
Minimum Inside Diameter (d) - 11.9986 inch
Nominal Outside Diameter (D) - 18 inch
Maximum Outside Diameter (D) - 18 inch
Minimum Outside Diameter (D) - 17.9982 inch
Inner Ring Width (B) - 9 inch
Outer Ring Width (C) - 7.5 inch
Sphere Diameter (K) - 16.2 inch
Unmounted Diametral Clearance - 0.009/0.014 inch
Shaft Shoulder Diameter (d1) - 13.464 inch
Tilt Angle (α) - 7°
Maximum Shaft Fillet (r1) - 0.08 inch
Maximum Housing Fillet (r2) - 0.08 inch
Approximate Weight - 317 lbs
Static Radial Load Limit - 4252000 lbf
Static Thrust Load Limit - 1422000 lbf
Static Dynamic Load Limit - 1063000 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 11.9978 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 11.9965 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 12.0017 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 12.0008 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 17.9957 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 17.9932 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 143.764 kg
Notes about B....L Series :
These bearings are built to handle substantial radial loads even when misalignment occurs. They can also support a moderate amount of thrust load. Featuring a non-separable design with a single split outer ring, they are offered in both open and sealed configurations, and are available in both inch and metric dimensions.
Other salient Points to be noted :
• Outer rings of bearings size 72 and above are double fractured (suffix-9L).
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.

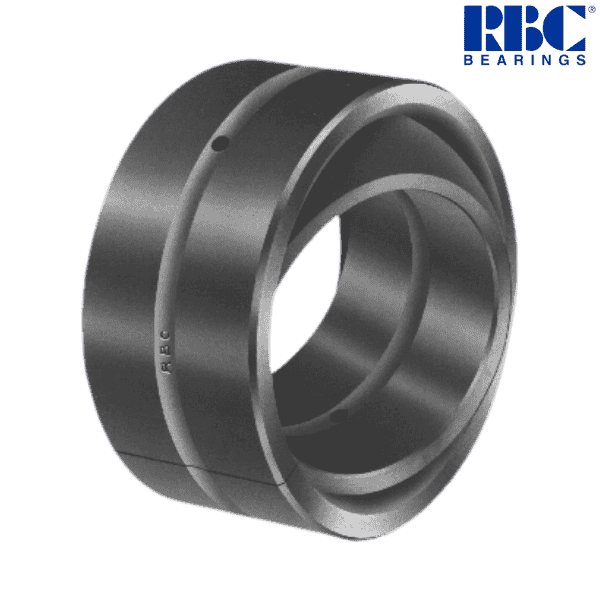

♦ ♦ Images are for representation purposes only
