Description
Brand - RBC
Item Number - B184-9LSSQ RBC
Category - QuadLube® Long Life Spherical Plain Bearings
Basic Part Number - (-184)
Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 11.5 inch
Maximum Inside Diameter (d) - 11.5 inch
Minimum Inside Diameter (d) - 11.4986 inch
Nominal Outside Diameter (D) - 17.25 inch
Maximum Outside Diameter (D) - 17.25 inch
Minimum Outside Diameter (D) - 17.2482 inch
Inner Ring Width (B) - 8.625 inch
Outer Ring Width (C) - 7.187 inch
Sphere Diameter (K) - 15.525 inch
Unmounted Diametral Clearance - 0.009/0.014 inch
Shaft Shoulder Diameter (d1) - 12.903 inch
Tilt Angle (α) - 7°
Maximum Shaft Fillet (r1) - 0.08 inch
Maximum Housing Fillet (r2) - 0.08 inch
Approximate Weight - 279 lbs
Static Radial Load Limit - 3905000 lbf
Static Thrust Load Limit - 1299000 lbf
Static Dynamic Load Limit - 976200 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 11.4978 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 11.4965 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 11.5017 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 11.5008 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 17.2459 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 17.2435 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 126.531 kg
Notes about B....LSSQ Series :
An advanced lubrication system delivers up to 300% longer service life. This patented design ensures consistent lubrication in the load zone, even without load reversal, and enables relubrication while the bearing is still under load. These bearings extend operational life in challenging applications and are available in both inch and metric sizes.
Other salient points to be noted :
• Outer rings of bearings size 72 and above are double fractured (suffix-9L).
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.

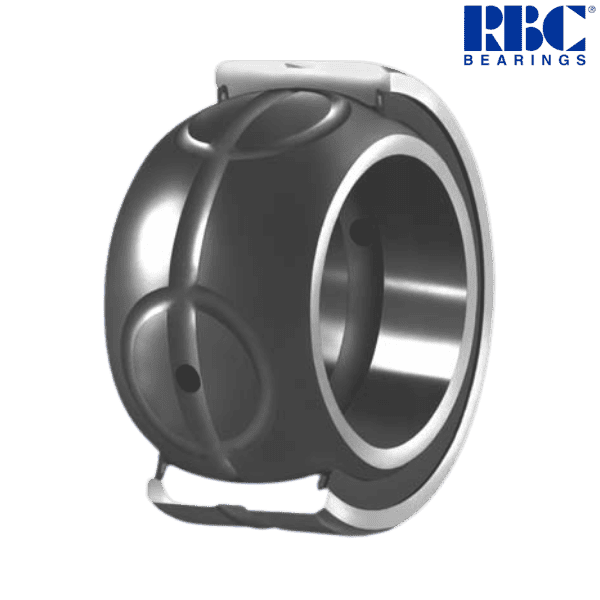

♦ ♦ Images are for representation purposes only
