Description
Brand - RBC
Item Number - B16LDLPTS RBC
Category - Duralube Maintenance Free Spherical Plain Bearings

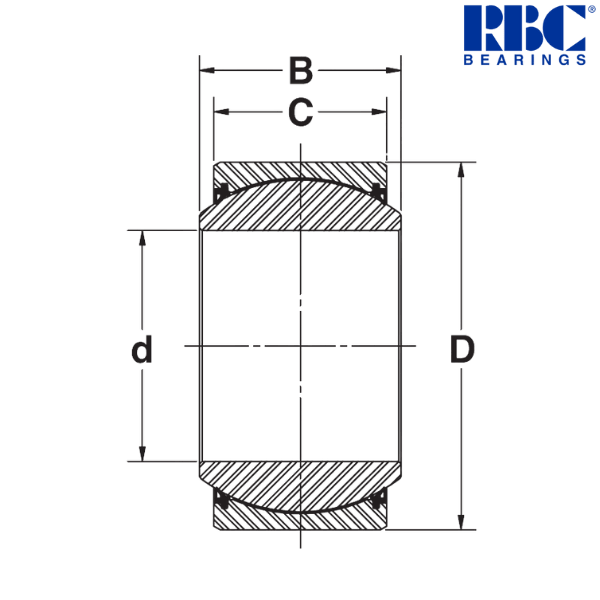

Inner Diameter (d) inch - 1
Outer Diameter (D) inch - 1.625
Width of Inner Ring (B) inch - 0.875
Width of Outer Ring (B) inch - 0.75
Static Radial Load (Ibf) - 45266
Static Thrust Load (Ibf) - 8441
Dynamic Radial Load (Ibf) - 22633
Notes :
-------------------------------------------------

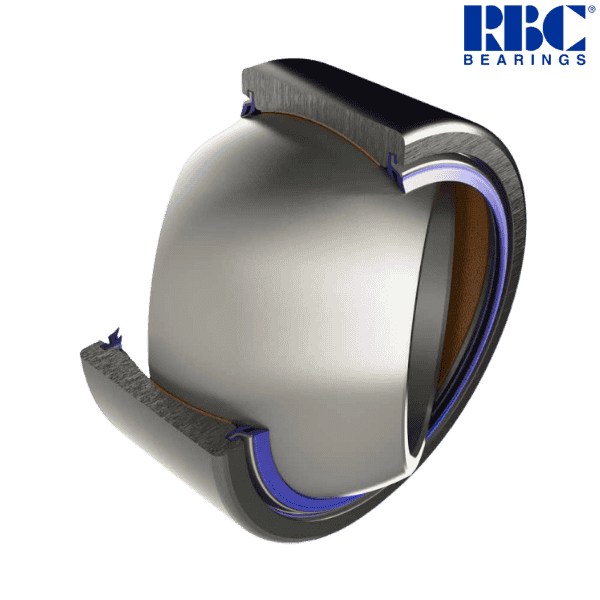

- DLP is RBC’s DuraLube™ II Plus Liner System.
- Ultimate static and impact loads should not exceed 150% of catalogue ratings.
** Images are for representation purposes only
