B1689LDLPTS RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - B1689LDLPTS RBC
Category - Duralube Maintenance Free Spherical Plain Bearings

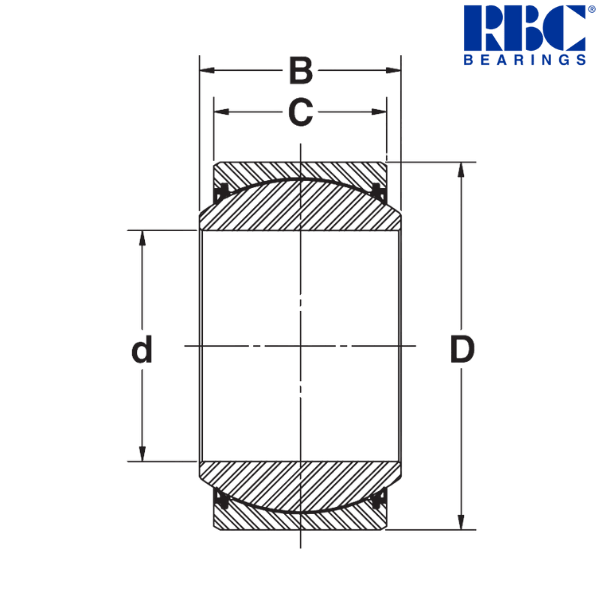

Inner Diameter (d) inch - 10.5
Outer Diameter (D) inch - 15.75
Width of Inner Ring (B) inch - 7.875
Width of Outer Ring (B) inch - 6.562
Static Radial Load (Ibf) - 3906687
Static Thrust Load (Ibf) - 1010081
Dynamic Radial Load (Ibf) - 1953343

Notes :
-------------------------------------------------

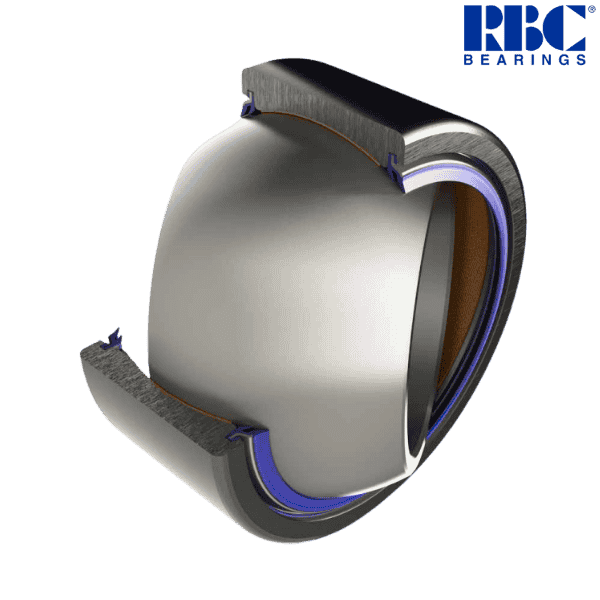

- DLP is RBC’s DuraLube™ II Plus Liner System.
- Ultimate static and impact loads should not exceed 150% of catalogue ratings.

** Images are for representation purposes only
