Description
Brand - RBC
Item Number - B160-9LNMSS RBC
Category - DuraLube Self-Lubricating, Maintenance-Free Spherical Plain Bearing
Basic Part Number - (-160)

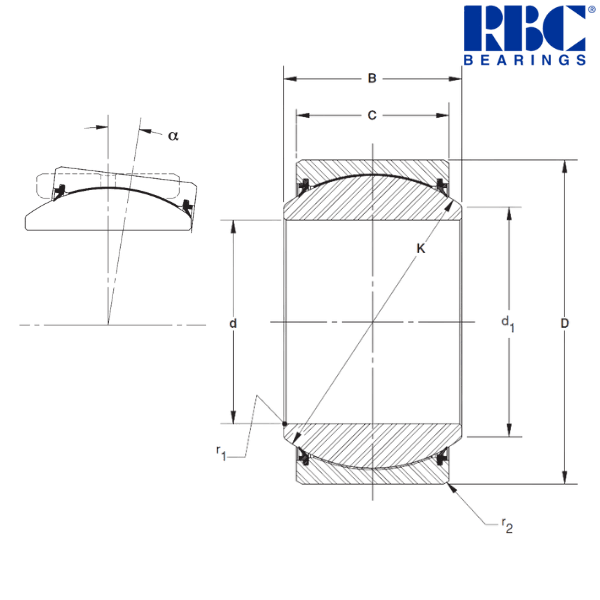

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 10.0 inch
Maximum Inside Diameter (d) - 10 inch
Minimum Inside Diameter (d) - 9.9986 inch
Nominal Outside Diameter (D) - 15 inch
Maximum Outside Diameter (D) - 15 inch
Minimum Outside Diameter (D) - 14.9984 inch
Inner Ring Width (B) - 7.5 inch
Outer Ring Width (C) - 6.25 inch
Sphere Diameter (K) - 13.5 inch
Unmounted Diametral Clearance - 0.008/0.013 inch
Shaft Shoulder Diameter (d1) - 11.22 inch
Tilt Angle (α) - 7°
Maximum Shaft Fillet (r1) - 0.08 inch
Maximum Housing Fillet (r2) - 0.08 inch
Approximate Weight - 183.4 lbs
Static Radial Load Limit - 2227500 lbf
Static Thrust Load Limit - 332491 lbf
Static Dynamic Load Limit - 1485000 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 9.9978 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 9.9965 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 10.0017 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 10.0008 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 14.9994 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 14.9971 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 83.175 kg
Notes about B....LNMSS Series :
RBC's DuraLube™ self-lubricating spherical plain bearings are built for long-lasting performance in tough environments. They operate without grease, using a robust PTFE liner system that minimizes friction between the inner and outer spherical surfaces. These bearings are perfect for situations where re-lubrication isn't feasible but extended service life is essential. They are available in both inch and metric sizes.
Other salient points to be noted :
• Outer rings of bearings size 72 and above are double fractured (suffix-9L).
• Ultimate static and impact loads should not exceed 150% of catalog ratings.
♦ ♦ Images are for representation purposes only
