Description
Brand - RBC
Item Number - B152-9LSSQ RBC
Category - QuadLube® Long Life Spherical Plain Bearings
Basic Part Number - (-152)

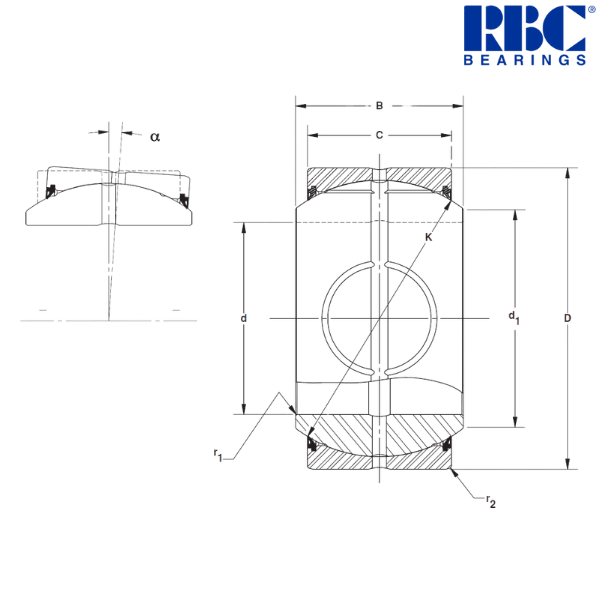

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 9.5 inch
Maximum Inside Diameter (d) - 9.5 inch
Minimum Inside Diameter (d) - 9.4988 inch
Nominal Outside Diameter (D) - 14.25 inch
Maximum Outside Diameter (D) - 14.25 inch
Minimum Outside Diameter (D) - 14.2484 inch
Inner Ring Width (B) - 7.125 inch
Outer Ring Width (C) - 5.937 inch
Sphere Diameter (K) - 12.825 inch
Unmounted Diametral Clearance - 0.008/0.013 inch
Shaft Shoulder Diameter (d1) - 10.659 inch
Tilt Angle (α) - 7°
Maximum Shaft Fillet (r1) - 0.08 inch
Maximum Housing Fillet (r2) - 0.08 inch
Approximate Weight - 157.2 lbs
Static Radial Load Limit - 2664000 lbf
Static Thrust Load Limit - 841500 lbf
Static Dynamic Load Limit - 666000 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 9.498 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 9.4969 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 9.5015 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 9.5007 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 14.2463 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 14.2441 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 71.293 kg
Notes about B....LSSQ Series :
An advanced lubrication system delivers up to 300% longer service life. This patented design ensures consistent lubrication in the load zone, even without load reversal, and enables relubrication while the bearing is still under load. These bearings extend operational life in challenging applications and are available in both inch and metric sizes.
Other salient points to be noted :
• Outer rings of bearings size 72 and above are double fractured (suffix-9L).
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.

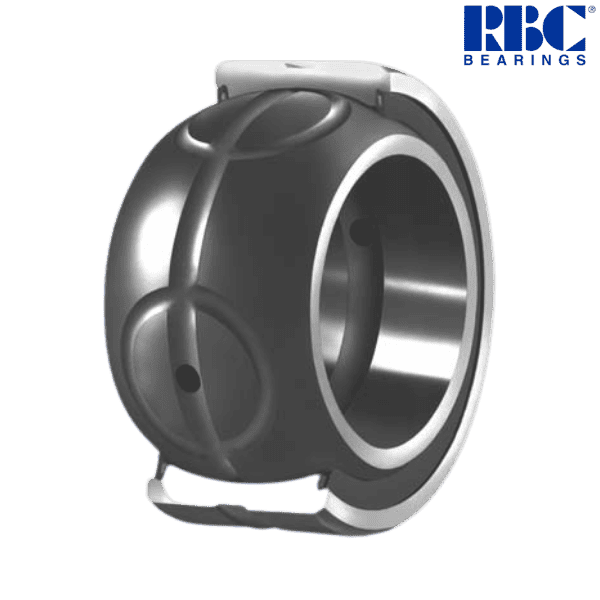

♦ ♦ Images are for representation purposes only
