Description
Brand - RBC
Item Number - B14-LSSQ RBC

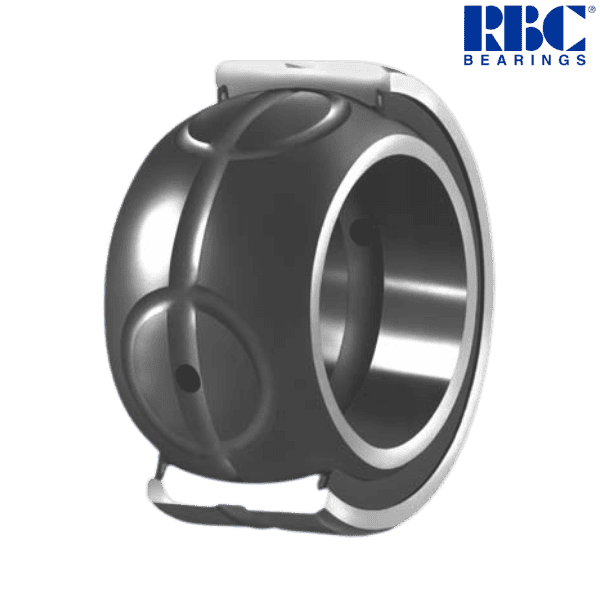

Category - QuadLube® Long Life Spherical Plain Bearings
Basic Part Number - (-14)
Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 0.875 inch
Maximum Inside Diameter (d) - 0.875 inch
Minimum Inside Diameter (d) - 0.8745 inch
Nominal Outside Diameter (D) - 1.4375 inch
Maximum Outside Diameter (D) - 1.4375 inch
Minimum Outside Diameter (D) - 1.437 inch
Inner Ring Width (B) - 0.765 inch
Outer Ring Width (C) - 0.656 inch
Sphere Diameter (K) - 1.258 inch
Unmounted Diametral Clearance - 0.003/0.007 inch
Shaft Shoulder Diameter (d1) - 0.984 inch
Tilt Angle (α) - 7°
Maximum Shaft Fillet (r1) - 0.022 inch
Maximum Housing Fillet (r2) - 0.015 inch
Approximate Weight - 0.193 lbs
Static Radial Load Limit - 28800 lbf
Static Thrust Load Limit - 5400 lbf
Static Dynamic Load Limit - 7200 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 0.8742 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 0.8737 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 0.8757 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 0.8753 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 1.4365 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 1.4355 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.088 kg
Notes about B....LSSQ Series :
An advanced lubrication system delivers up to 300% longer service life. This patented design ensures consistent lubrication in the load zone, even without load reversal, and enables relubrication while the bearing is still under load. These bearings extend operational life in challenging applications and are available in both inch and metric sizes.
Other salient points to be noted :
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.
♦ ♦ Images are for representation purposes only
