Description
Brand - RBC
Item Number - B10-EL RBC
Category - Spherical Plain Bearing with Extended Inner Ring
Basic Part Number - (-10)
Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 0.625 inch
Maximum Inside Diameter (d) - 0.625 inch
Minimum Inside Diameter (d) - 0.6245 inch
Nominal Outside Diameter (D) - 1.0625 inch
Maximum Outside Diameter (D) - 1.0625 inch
Minimum Outside Diameter (D) - 1.062 inch
Inner Ring Width (B) - 0.937 inch
Outer Ring Width (C) - 0.469 inch
Sphere Diameter (K) - 0.899 inch
Unmounted Diametral Clearance - 0.002/0.006 inch
Shaft Shoulder Diameter (d1) - 0.78 inch
Tilt Angle (α) - 9°
Maximum Shaft Fillet (r1) - 0.022 inch
Maximum Housing Fillet (r2) - 0.032 inch
Approximate Weight - 0.08 lbs
Static Radial Load Limit - 14700 lbf
Static Thrust Load Limit - 2500 lbf
Static Dynamic Load Limit - 3600 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 0.6244 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 0.6239 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 0.6256 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 0.6253 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 1.0617 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 1.0609 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.036 kg
Notes about B....EL Series :
The extended inner ring design removes the need for extra locational spacers. Additionally, the inner ring bore is relieved to minimize bending stress. These bearings come in both open and sealed versions, and are offered in inch or metric sizes.
Other salient points to be noted :
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.

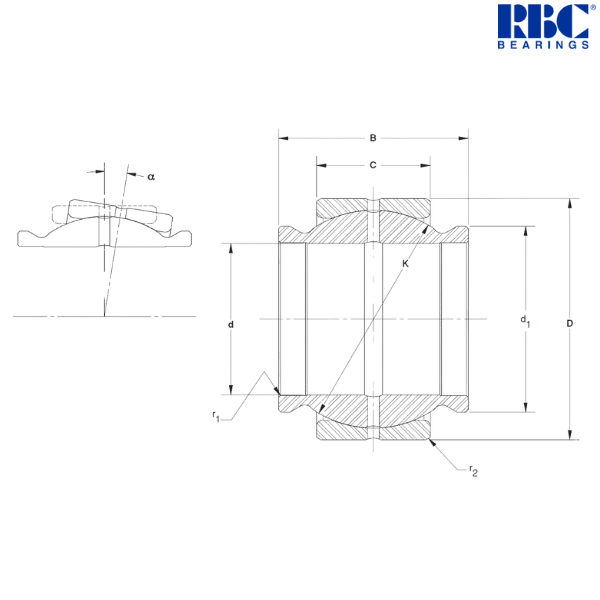

♦ ♦ Images are for representation purposes only
