AZ 26034055 IKO

Brand - IKO
Item Number - AZ 26034055 IKO
Also Known As - AZ26034055
Category - Thrust Roller Bearing with Cage Assembly
Shaft Diameter (mm) - 260
Weight (kg) - 15.4
Thrust Roller Bearing - AZK 26034025
Weight of Thrust Bearing (kg) - 6.6
Inner Ring - WS 260340
Outer Ring - GS 260340
Weight of Outer Ring (kg) - 4.4

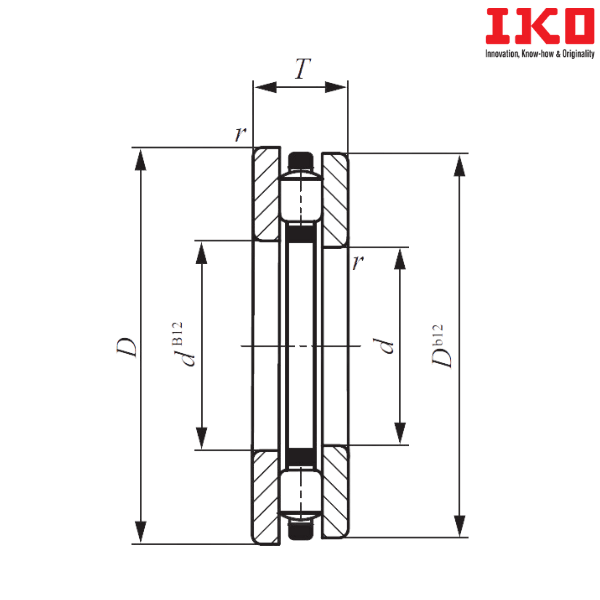

Bore Diameter (d) mm - 260
Outer Diameter (D) mm - 340
Width (T) mm - 55
Boundary Dimension (dc) mm - 260.15
Boundary Dimension (Dc) mm - 339
Boundary Dimension (Dw) mm - 25
Boundary Dimension (B) mm - 15
Minimum Allowable Value of Chamfer Dimension (rs) mm - 2.1
Boundary Dimension (Ci) mm - 278
Boundary Dimension (Ce) mm - 328

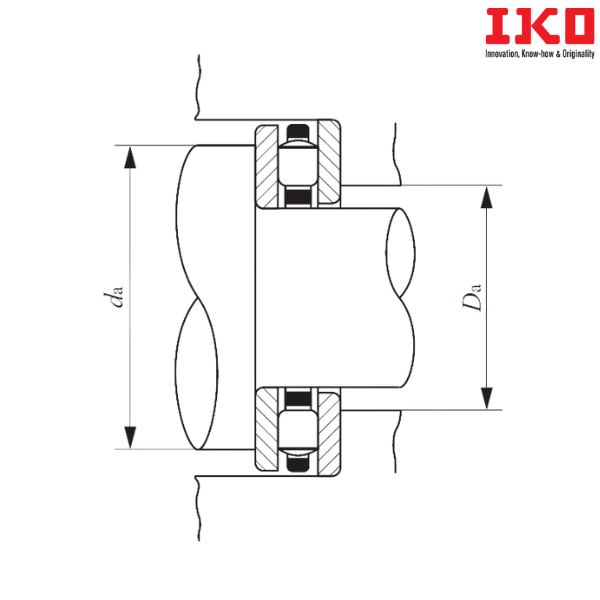

Minimum Standard mounting Dimension (da) mm - 326
Maximum Standard mounting Dimension (Da) mm - 279
Basic Dynamic Load Rating (C) N - 739000
Basic Static Load Rating (C0) N - 3510000
Allowable Rotational Speed (min-1) - 1000

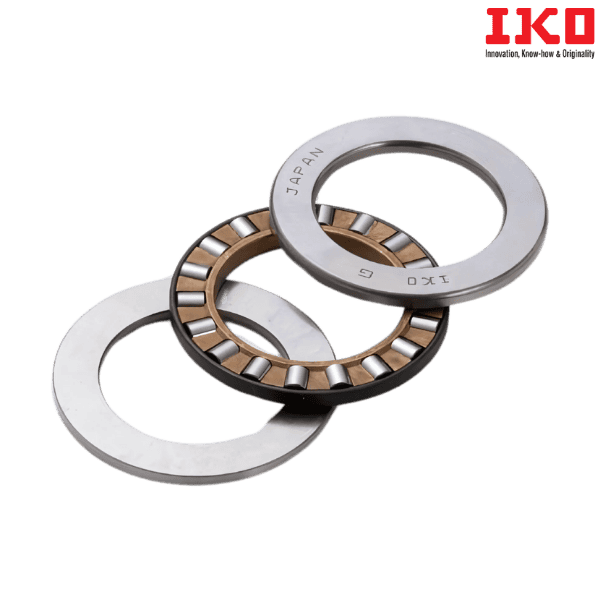

** Images are for representation purposes only
