AZ 24031554 IKO

Brand - IKO
Item Number - AZ 24031554 IKO
Also Known As - AZ24031554
Category - Thrust Roller Bearing with Cage Assembly
Shaft Diameter (mm) - 240
Weight (kg) - 13.2
Thrust Roller Bearing - AZK 24031524
Weight of Thrust Bearing (kg) - 5.52
Inner Ring - WS 240315
Outer Ring - GS 240315
Weight of Outer Ring (kg) - 3.84

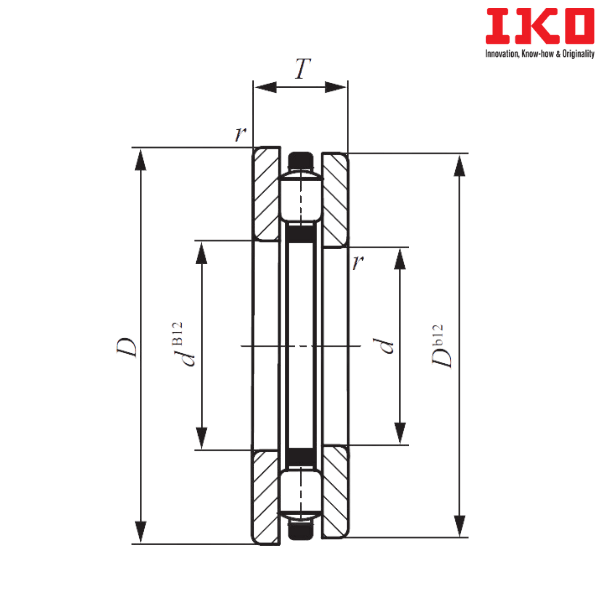

Bore Diameter (d) mm - 240
Outer Diameter (D) mm - 315
Width (T) mm - 54
Boundary Dimension (dc) mm - 240.15
Boundary Dimension (Dc) mm - 314
Boundary Dimension (Dw) mm - 24
Boundary Dimension (B) mm - 15
Minimum Allowable Value of Chamfer Dimension (rs) mm - 2
Boundary Dimension (Ci) mm - 256
Boundary Dimension (Ce) mm - 304

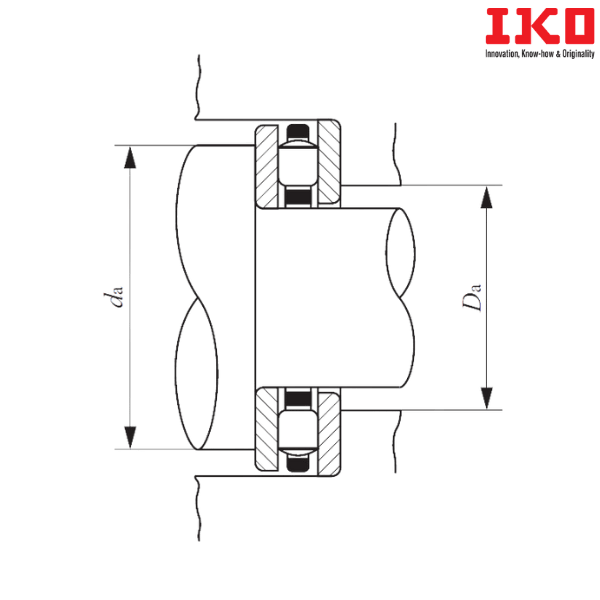

Minimum Standard mounting Dimension (da) mm - 302
Maximum Standard mounting Dimension (Da) mm - 257
Basic Dynamic Load Rating (C) N - 695000
Basic Static Load Rating (C0) N - 3250000
Allowable Rotational Speed (min-1) - 1100

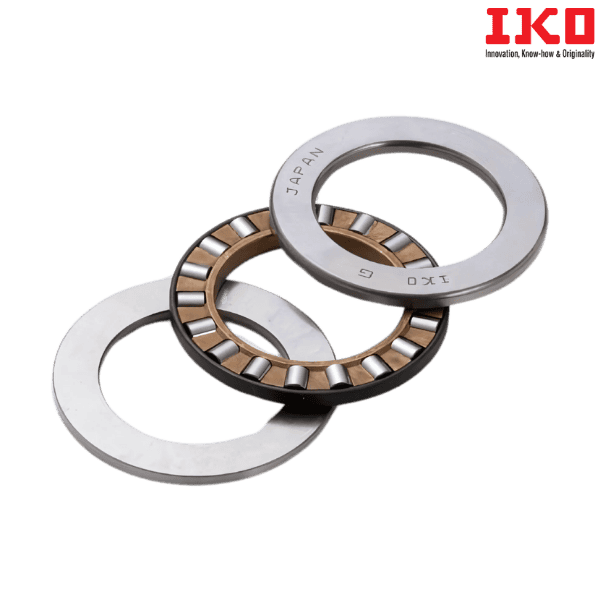

** Images are for representation purposes only
