AZ 22029050 IKO

Brand - IKO
Item Number - AZ 22029050 IKO
Also Known As - AZ22029050

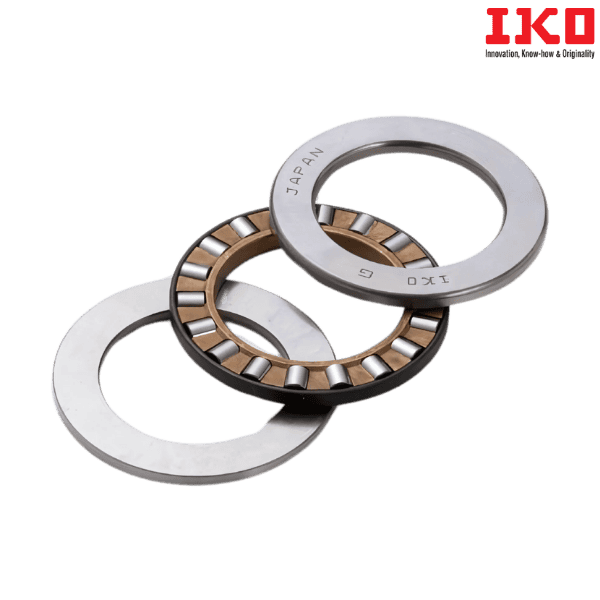

Category - Thrust Roller Bearing with Cage Assembly
Shaft Diameter (mm) - 220
Weight (kg) - 10.4
Thrust Roller Bearing - AZK 22029022
Weight of Thrust Bearing (kg) - 4.28
Inner Ring - WS 220290
Outer Ring - GS 220290
Weight of Outer Ring (kg) - 3.06

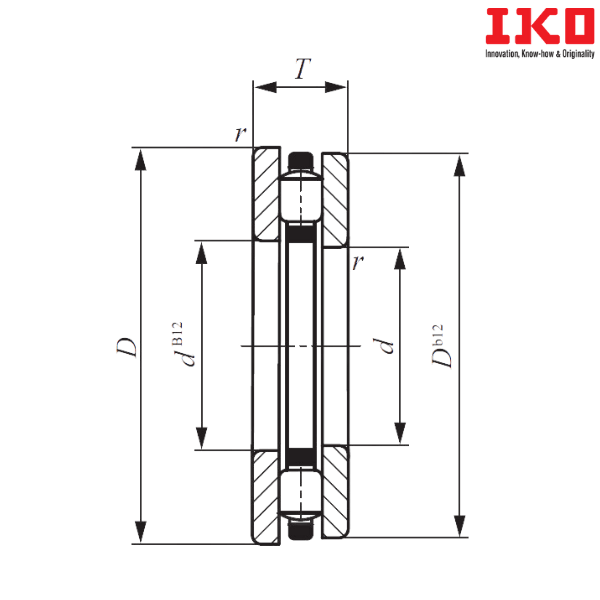

Bore Diameter (d) mm - 220
Outer Diameter (D) mm - 290
Width (T) mm - 50
Boundary Dimension (dc) mm - 220.15
Boundary Dimension (Dc) mm - 289
Boundary Dimension (Dw) mm - 22
Boundary Dimension (B) mm - 14
Minimum Allowable Value of Chamfer Dimension (rs) mm - 2
Boundary Dimension (Ci) mm - 236
Boundary Dimension (Ce) mm - 280

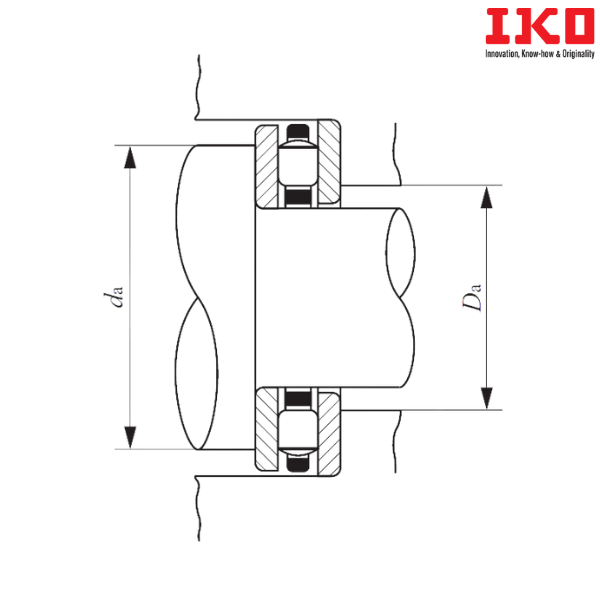

Minimum Standard mounting Dimension (da) mm - 278
Maximum Standard mounting Dimension (Da) mm - 237
Basic Dynamic Load Rating (C) N - 557000
Basic Static Load Rating (C0) N - 2530000
Allowable Rotational Speed (min-1) - 1300

** Images are for representation purposes only
