AZ 17028039 IKO

Brand - IKO
Item Number - AZ 17028039 IKO
Also Known As - AZ17028039

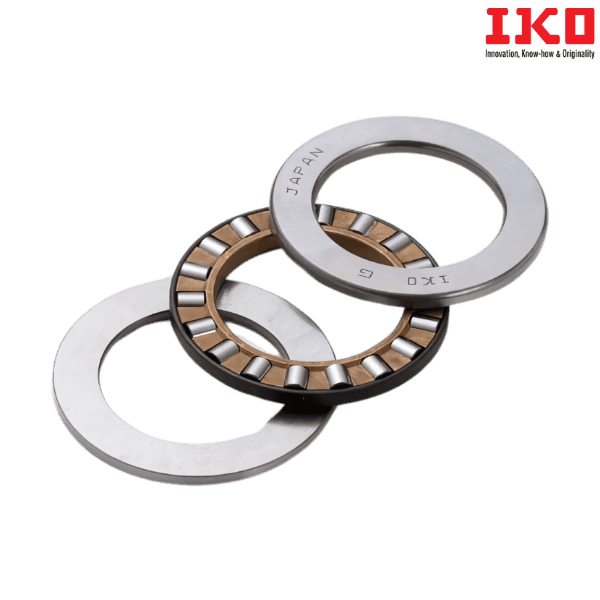

Category - Thrust Roller Bearing with Cage Assembly
Shaft Diameter (mm) - 170
Weight (kg) - 11.3
Thrust Roller Bearing - AZK 17028015
Weight of Thrust Bearing (kg) - 4.02
Inner Ring - WS 170280
Outer Ring - GS 170280
Weight of Outer Ring (kg) - 3.64

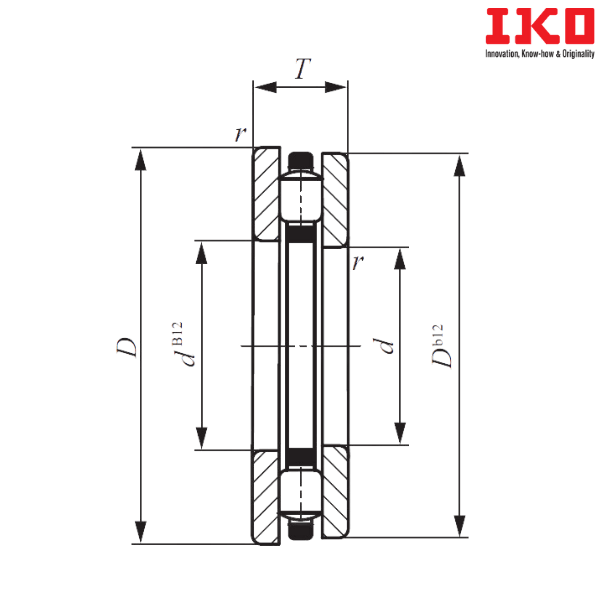

Bore Diameter (d) mm - 170
Outer Diameter (D) mm - 280
Width (T) mm - 39
Boundary Dimension (dc) mm - 170.1
Boundary Dimension (Dc) mm - 279
Boundary Dimension (Dw) mm - 15
Boundary Dimension (B) mm - 12
Minimum Allowable Value of Chamfer Dimension (rs) mm - 3
Boundary Dimension (Ci) mm - 193
Boundary Dimension (Ce) mm - 266

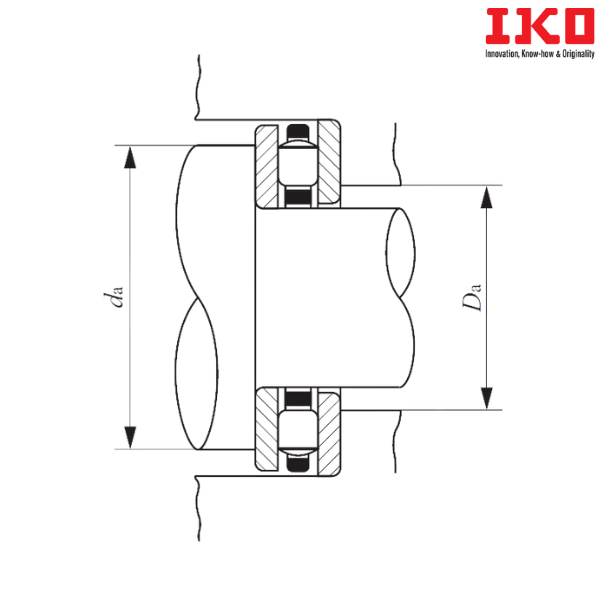

Minimum Standard mounting Dimension (da) mm - 265
Maximum Standard mounting Dimension (Da) mm - 194
Basic Dynamic Load Rating (C) N - 543000
Basic Static Load Rating (C0) N - 3070000
Allowable Rotational Speed (min-1) - 1300

** Images are for representation purposes only
