AZ 15025039 IKO

Brand - IKO
Item Number - AZ 15025039 IKO
Also Known As - AZ15025039

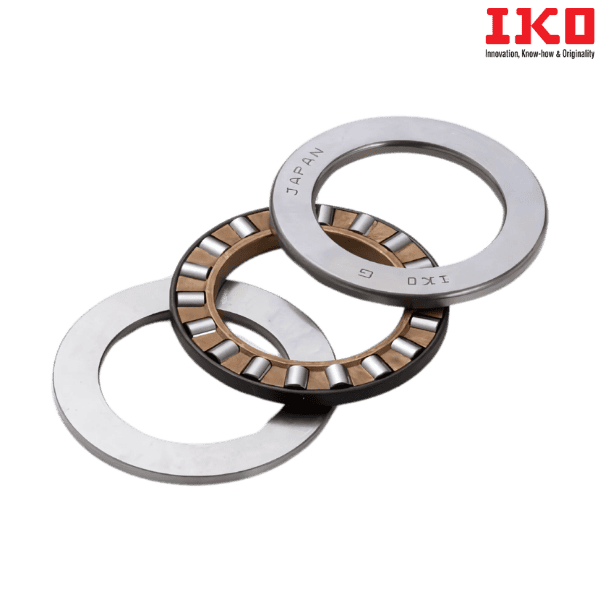

Category - Thrust Roller Bearing with Cage Assembly
Shaft Diameter (mm) - 150
Weight (kg) - 9.14
Thrust Roller Bearing - AZK 15025015
Weight of Thrust Bearing (kg) - 3.26
Inner Ring - WS 150250
Outer Ring - GS 150250
Weight of Outer Ring (kg) - 2.94

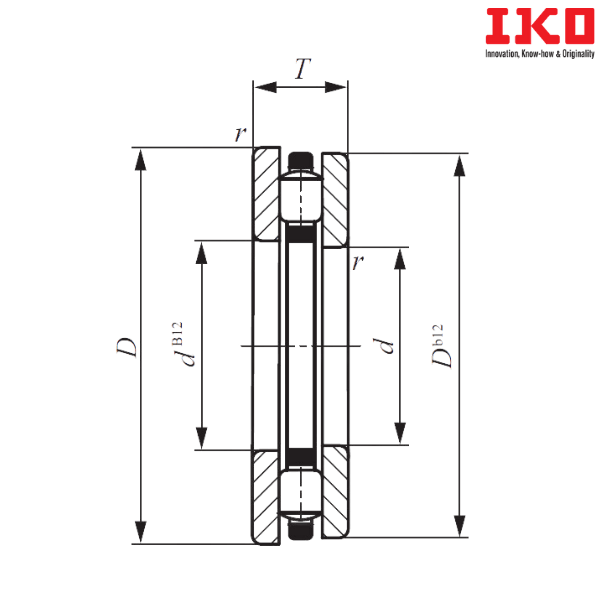

Bore Diameter (d) mm - 150
Outer Diameter (D) mm - 250
Width (T) mm - 39
Boundary Dimension (dc) mm - 150.1
Boundary Dimension (Dc) mm - 249
Boundary Dimension (Dw) mm - 15
Boundary Dimension (B) mm - 12
Minimum Allowable Value of Chamfer Dimension (rs) mm - 2.1
Boundary Dimension (Ci) mm - 171
Boundary Dimension (Ce) mm - 237

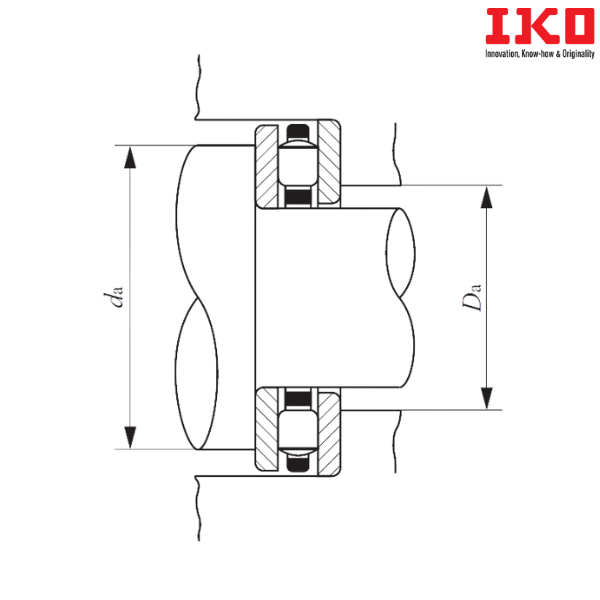

Minimum Standard mounting Dimension (da) mm - 236
Maximum Standard mounting Dimension (Da) mm - 172
Basic Dynamic Load Rating (C) N - 459000
Basic Static Load Rating (C0) N - 2380000
Allowable Rotational Speed (min-1) - 1500

** Images are for representation purposes only
