AZ 14024039 IKO

Brand - IKO
Item Number - AZ 14024039 IKO
Also Known As - AZ14024039
Category - Thrust Roller Bearing with Cage Assembly
Shaft Diameter (mm) - 140
Weight (kg) - 8.68
Thrust Roller Bearing - AZK 14024015
Weight of Thrust Bearing (kg) - 3.1
Inner Ring - WS 140240
Outer Ring - GS 140240
Weight of Outer Ring (kg) - 2.79

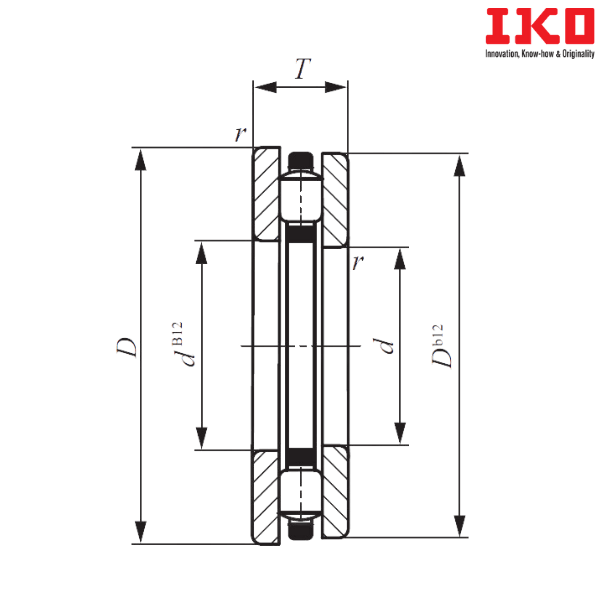

Bore Diameter (d) mm - 140
Outer Diameter (D) mm - 240
Width (T) mm - 39
Boundary Dimension (dc) mm - 140.1
Boundary Dimension (Dc) mm - 239
Boundary Dimension (Dw) mm - 15
Boundary Dimension (B) mm - 12
Minimum Allowable Value of Chamfer Dimension (rs) mm - 2.1
Boundary Dimension (Ci) mm - 161
Boundary Dimension (Ce) mm - 227

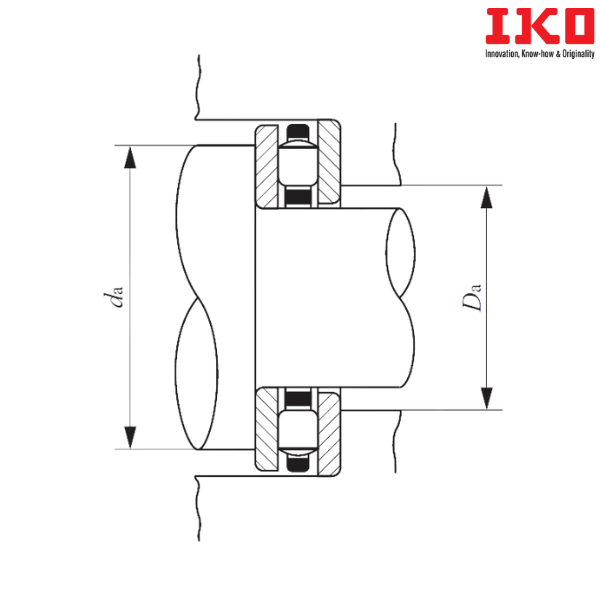

Minimum Standard mounting Dimension (da) mm - 226
Maximum Standard mounting Dimension (Da) mm - 162
Basic Dynamic Load Rating (C) N - 435000
Basic Static Load Rating (C0) N - 2180000
Allowable Rotational Speed (min-1) - 1600

** Images are for representation purposes only
