AZ 13023039 IKO

Brand - IKO
Item Number - AZ 13023039 IKO
Also Known As - AZ13023039

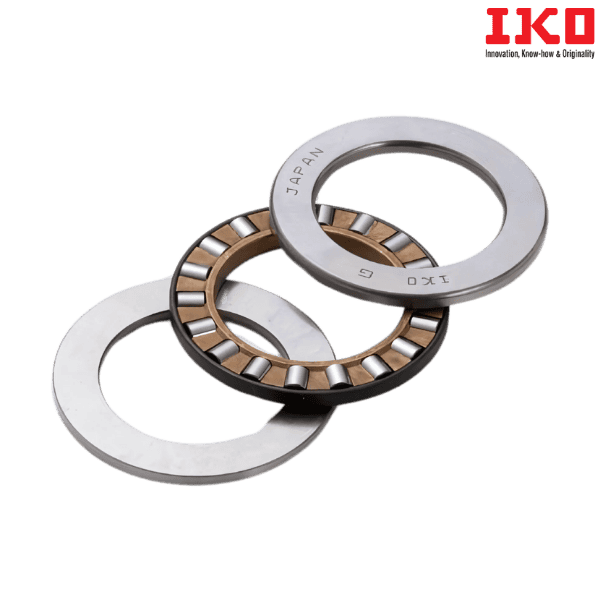

Category - Thrust Roller Bearing with Cage Assembly
Shaft Diameter (mm) - 130
Weight (kg) - 8.24
Thrust Roller Bearing - AZK 13023015
Weight of Thrust Bearing (kg) - 2.94
Inner Ring - WS 130230
Outer Ring - GS 130230
Weight of Outer Ring (kg) - 2.65

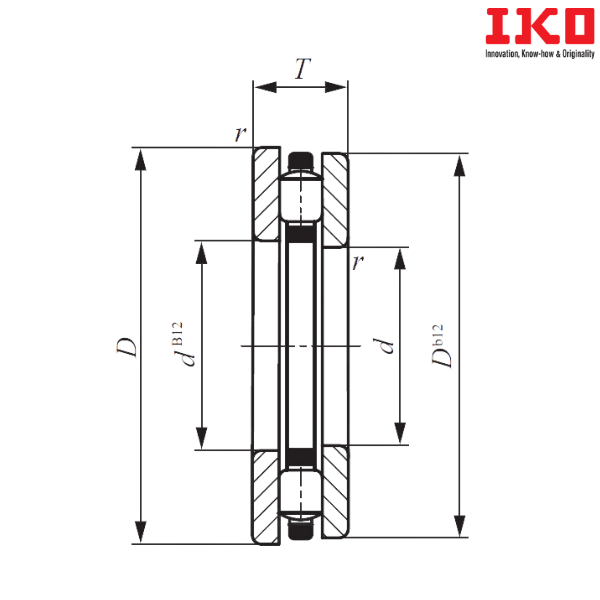

Bore Diameter (d) mm - 130
Outer Diameter (D) mm - 230
Width (T) mm - 39
Boundary Dimension (dc) mm - 130.1
Boundary Dimension (Dc) mm - 229
Boundary Dimension (Dw) mm - 15
Boundary Dimension (B) mm - 12
Minimum Allowable Value of Chamfer Dimension (rs) mm - 2.1
Boundary Dimension (Ci) mm - 151
Boundary Dimension (Ce) mm - 217

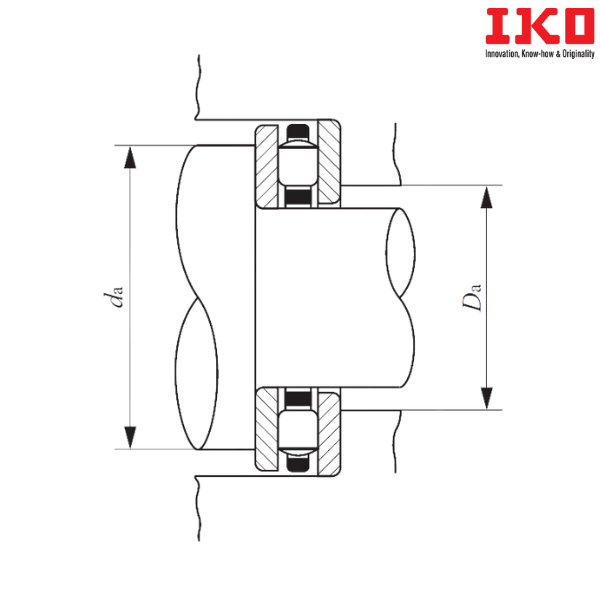

Minimum Standard mounting Dimension (da) mm - 216
Maximum Standard mounting Dimension (Da) mm - 152
Basic Dynamic Load Rating (C) N - 440000
Basic Static Load Rating (C0) N - 2180000
Allowable Rotational Speed (min-1) - 1700

** Images are for representation purposes only
