AZ 10015038 IKO

Brand - IKO
Item Number - AZ 10015038 IKO
Also Known As - AZ10015038
Category - Thrust Roller Bearing with Cage Assembly
Shaft Diameter (mm) - 100
Weight (kg) - 2.72
Thrust Roller Bearing - AZK 10015015
Weight of Thrust Bearing (kg) - 0.98
Inner Ring - WS 100150
Outer Ring - GS 100150
Weight of Outer Ring (kg) - 0.87

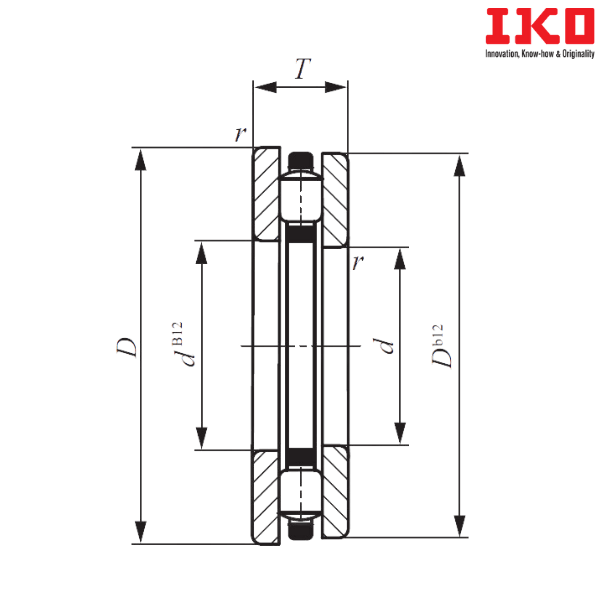

Bore Diameter (d) mm - 100
Outer Diameter (D) mm - 150
Width (T) mm - 38
Boundary Dimension (dc) mm - 100.05
Boundary Dimension (Dc) mm - 149.5
Boundary Dimension (Dw) mm - 15
Boundary Dimension (B) mm - 11.5
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1.1
Boundary Dimension (Ci) mm - 112
Boundary Dimension (Ce) mm - 143

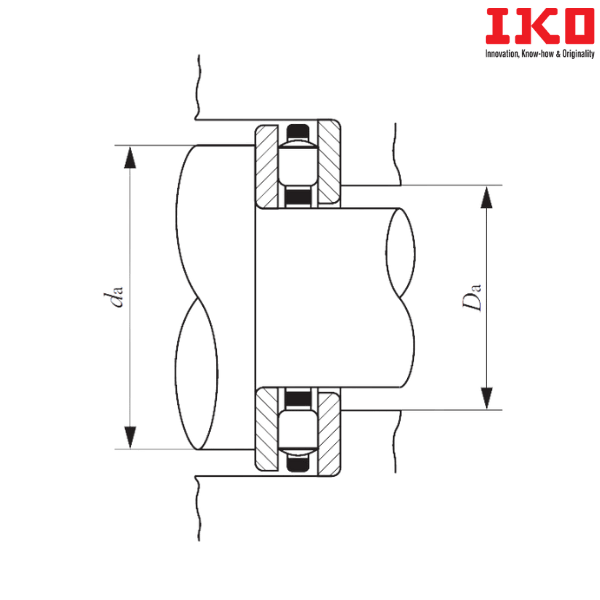

Minimum Standard mounting Dimension (da) mm - 142
Maximum Standard mounting Dimension (Da) mm - 113
Basic Dynamic Load Rating (C) N - 219000
Basic Static Load Rating (C0) N - 796000
Allowable Rotational Speed (min-1) - 2500

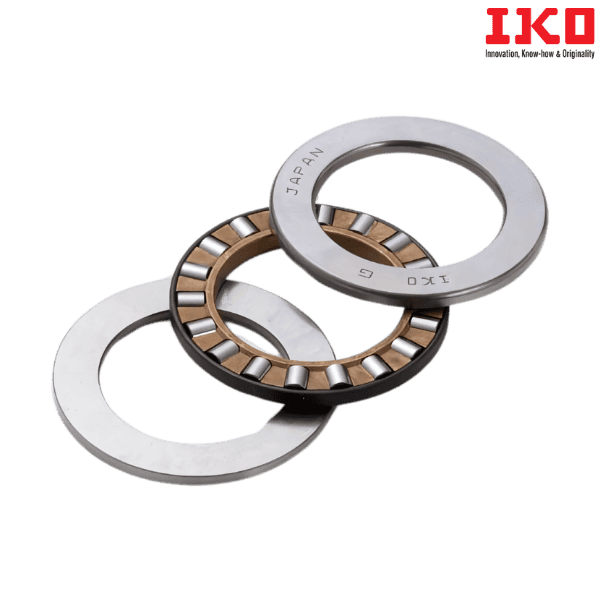

** Images are for representation purposes only
