Description
Brand - NADELLA
Item Number - AXZ 8 50 71 NADELLA
Category - Needle Thrust Bearing with Thrust Plate

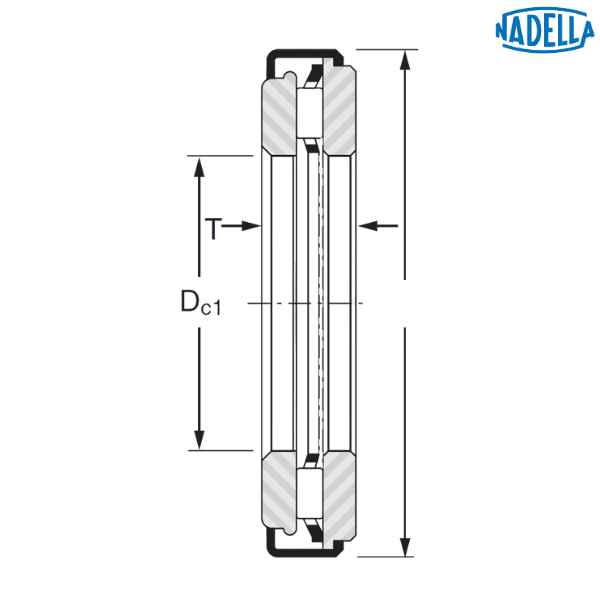

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 50 mm
Inner Diameter (d) - 50 mm
Outer Diameter (D) - 71 mm
Width (T) - 8 mm
Dynamic Load Rating (C) - 22.5 kN
Static Load Rating (C0) - 118 kN
Speed Limit with Oil - 4000 rpm
Weight - 0.1 kg
Description of Prefix :
AXZ - Needle thrust bearing with retained plate
♦ ♦ Images are for representation purposes only
