AXZ 8 45 66 NADELLA

Brand - NADELLA
Item Number - AXZ 8 45 66 NADELLA

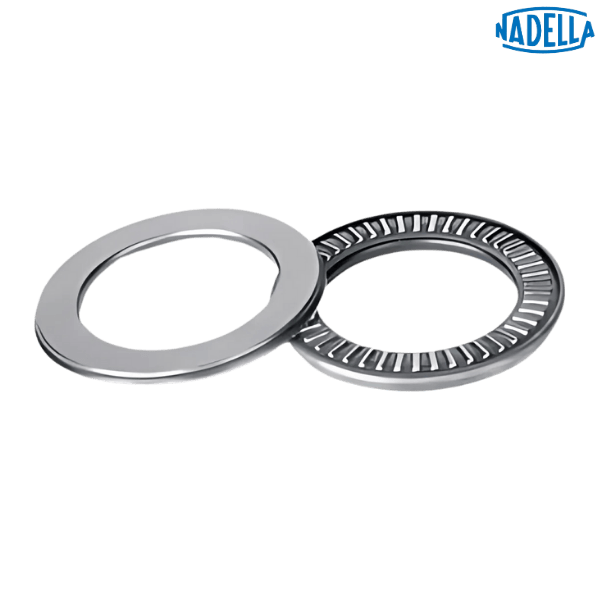

Category - Needle Thrust Bearing with Thrust Plate

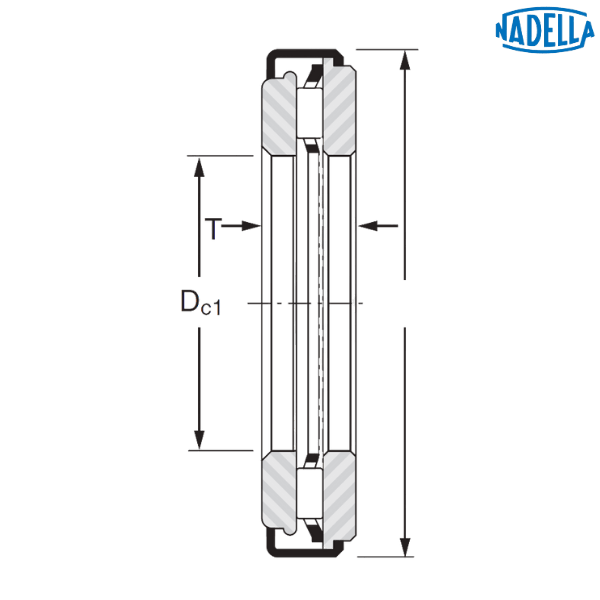

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 45 mm
Inner Diameter (d) - 45 mm
Outer Diameter (D) - 66 mm
Width (T) - 8 mm
Dynamic Load Rating (C) - 21.8 kN
Static Load Rating (C0) - 109 kN
Speed Limit with Oil - 4500 rpm
Weight - 0.092 kg

Description of Prefix :
AXZ - Needle thrust bearing with retained plate

♦ ♦ Images are for representation purposes only
