AXZ 8 35 54 NADELLA

Brand - NADELLA
Item Number - AXZ 8 35 54 NADELLA
Category - Needle Thrust Bearing with Thrust Plate

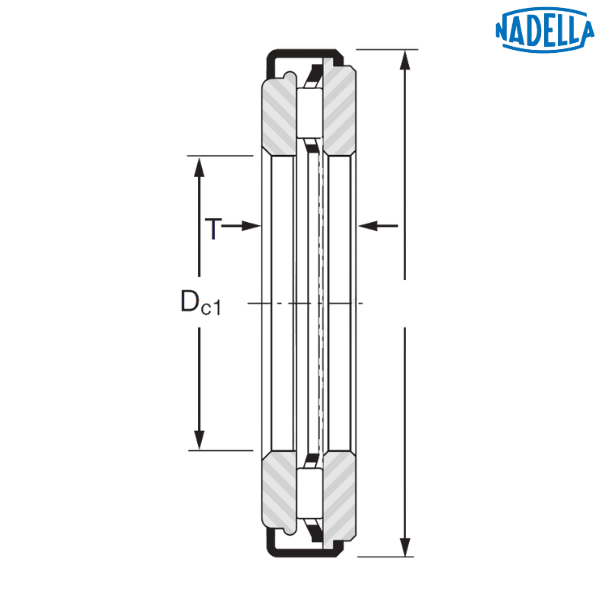

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 35 mm
Inner Diameter (d) - 35 mm
Outer Diameter (D) - 54 mm
Width (T) - 8 mm
Dynamic Load Rating (C) - 18.9 kN
Static Load Rating (C0) - 84 kN
Speed Limit with Oil - 5500 rpm
Weight - 0.066 kg

Description of Prefix :
AXZ - Needle thrust bearing with retained plate

♦ ♦ Images are for representation purposes only
