AXZ 8 30 48 NADELLA

Brand - NADELLA
Item Number - AXZ 8 30 48 NADELLA
Category - Needle Thrust Bearing with Thrust Plate

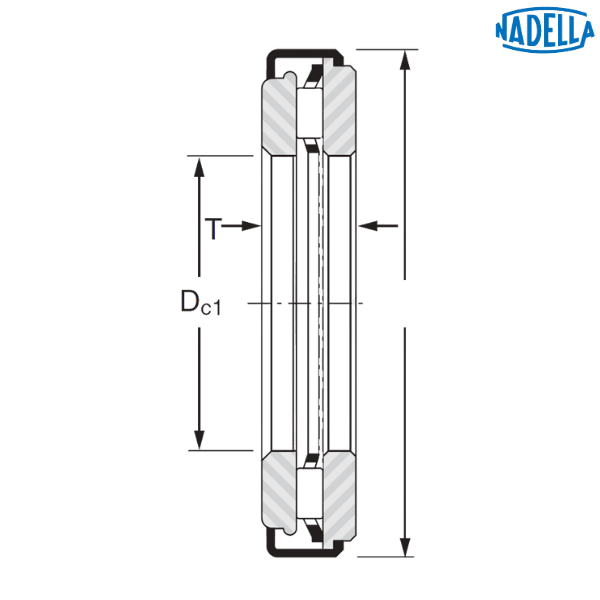

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Inner Diameter (d) - 30 mm
Outer Diameter (D) - 48 mm
Width (T) - 8 mm
Dynamic Load Rating (C) - 14.5 kN
Static Load Rating (C0) - 57 kN
Speed Limit with Oil - 6500 rpm
Weight - 0.054 kg

Description of Prefix :
AXZ - Needle thrust bearing with retained plate
