Description
Brand - NADELLA
Item Number - AXZ 8 25 43 NADELLA
Category - Needle Thrust Bearing with Thrust Plate
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 25 mm
Inner Diameter (d) - 25 mm
Outer Diameter (D) - 43 mm
Width (T) - 8 mm
Dynamic Load Rating (C) - 13.3 kN
Static Load Rating (C0) - 49 kN
Speed Limit with Oil - 7500 rpm
Weight - 0.047 kg
Description of Prefix :
AXZ - Needle thrust bearing with retained plate

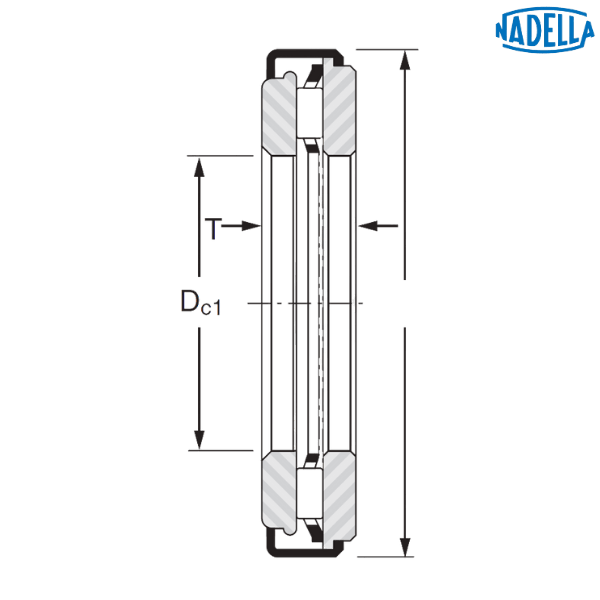

♦ ♦ Images are for representation purposes only
