Description
Brand - NADELLA
Item Number - AXZ 8 20 35.4 NADELLA

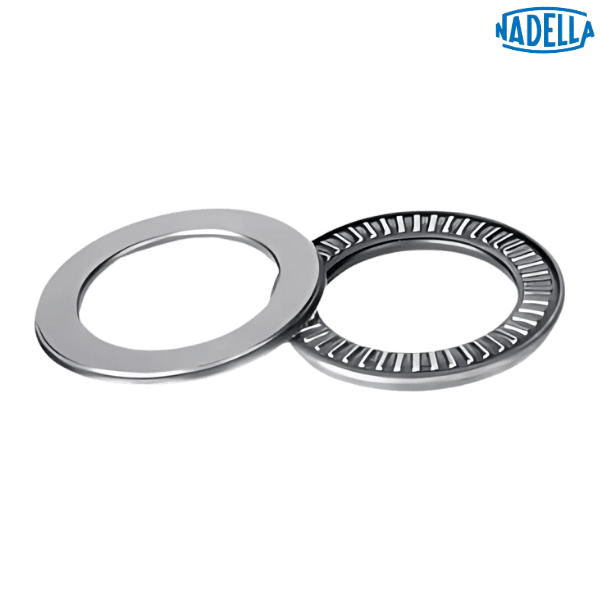

Category - Needle Thrust Bearing with Thrust Plate

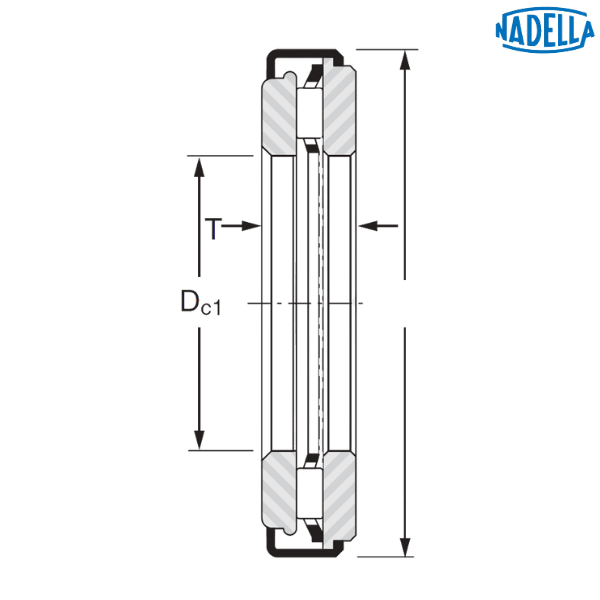

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 20 mm
Inner Diameter (d) - 20 mm
Outer Diameter (D) - 35.4 mm
Width (T) - 8 mm
Dynamic Load Rating (C) - 11.8 kN
Static Load Rating (C0) - 39 kN
Speed Limit with Oil - 9000 rpm
Weight - 0.033 kg
Description of Prefix :
AXZ - Needle thrust bearing with retained plate
♦ ♦ Images are for representation purposes only
Item Number - AXZ 8 20 35.4 NADELLA
Category - Needle Thrust Bearing with Thrust Plate
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 20 mm
Inner Diameter (d) - 20 mm
Outer Diameter (D) - 35.4 mm
Width (T) - 8 mm
Dynamic Load Rating (C) - 11.8 kN
Static Load Rating (C0) - 39 kN
Speed Limit with Oil - 9000 rpm
Weight - 0.033 kg
Description of Prefix :
AXZ - Needle thrust bearing with retained plate
♦ ♦ Images are for representation purposes only
