AXZ 6 17 30.4 NADELLA

Brand - NADELLA
Item Number - AXZ 6 17 30.4 NADELLA
Category - Needle Thrust Bearing with Thrust Plate

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 17 mm
Inner Diameter (d) - 17 mm
Outer Diameter (D) - 30.4 mm
Width (T) - 6 mm
Dynamic Load Rating (C) - 7.8 kN
Static Load Rating (C0) - 22 kN
Speed Limit with Oil - 10500 rpm
Weight - 0.018 kg

Description of Prefix :
AXZ - Needle thrust bearing with retained plate

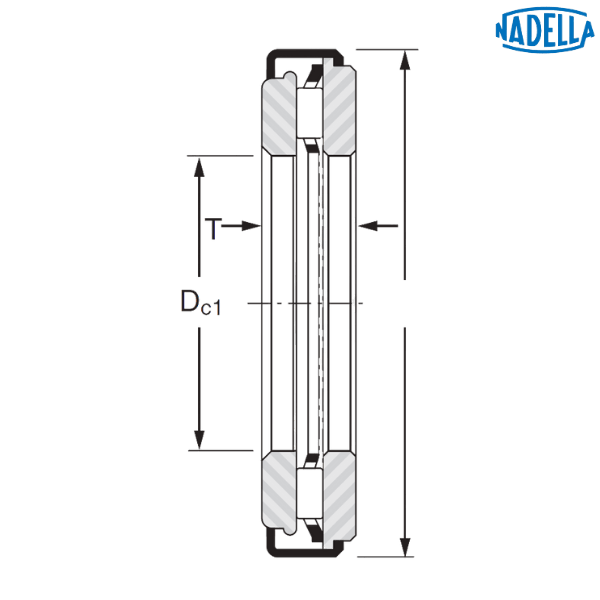

♦ ♦ Images are for representation purposes only
