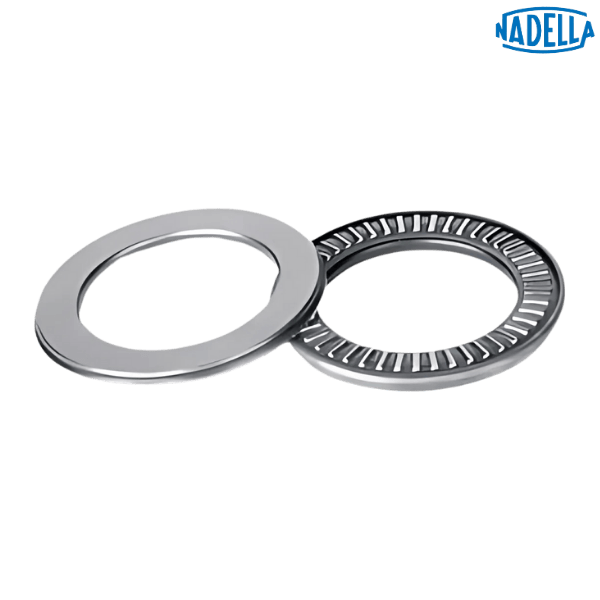

AXZ 6 10 22.4 NADELLA

Brand - NADELLA
Item Number - AXZ 6 10 22.4 NADELLA
Category - Needle Thrust Bearing with Thrust Plate

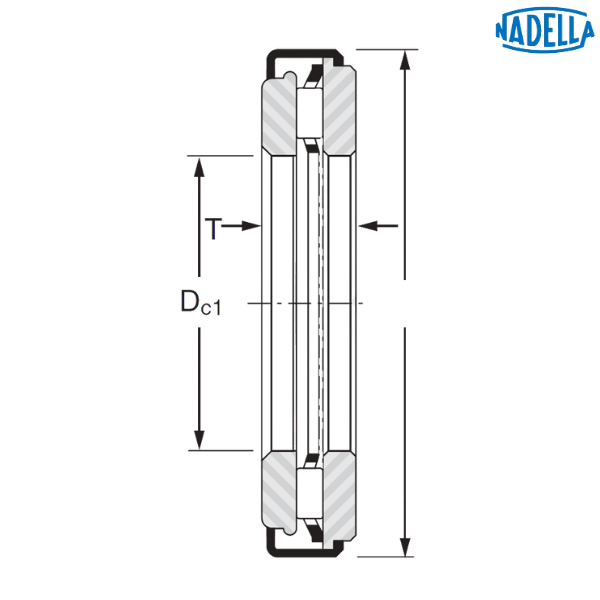

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 10 mm
Inner Diameter (d) - 10 mm
Outer Diameter (D) - 22.4 mm
Width (T) - 6 mm
Dynamic Load Rating (C) - 5 kN
Static Load Rating (C0) - 10.9 kN
Speed Limit with Oil - 15500 rpm
Weight - 0.011 kg

Description of Prefix :
AXZ - Needle thrust bearing with retained plate

♦ ♦ Images are for representation purposes only
