AXZ 5.5 7 15 NADELLA

Brand - NADELLA
Item Number - AXZ 5.5 7 15 NADELLA
Category - Needle Thrust Bearing with Thrust Plate

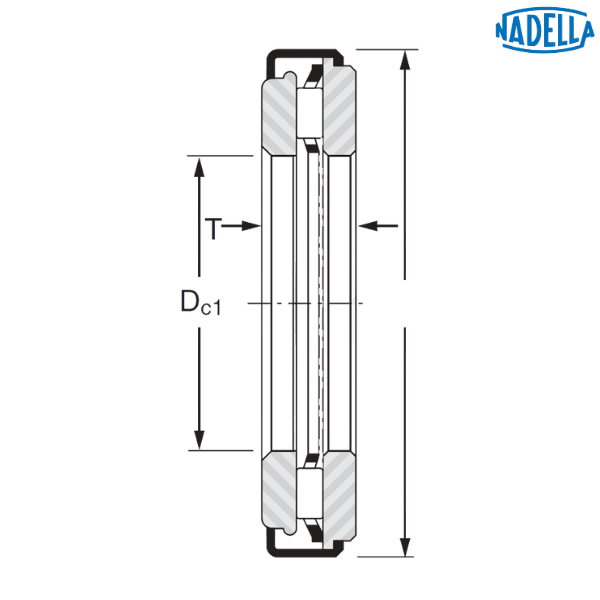

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 7 mm
Inner Diameter (d) - 7 mm
Outer Diameter (D) - 15 mm
Width (T) - 5.5 mm
Dynamic Load Rating (C) - 3.55 kN
Static Load Rating (C0) - 7.6 kN
Speed Limit with Oil - 22000 rpm
Weight - 0.005 kg

Description of Prefix :
AXZ - Needle thrust bearing with retained plate

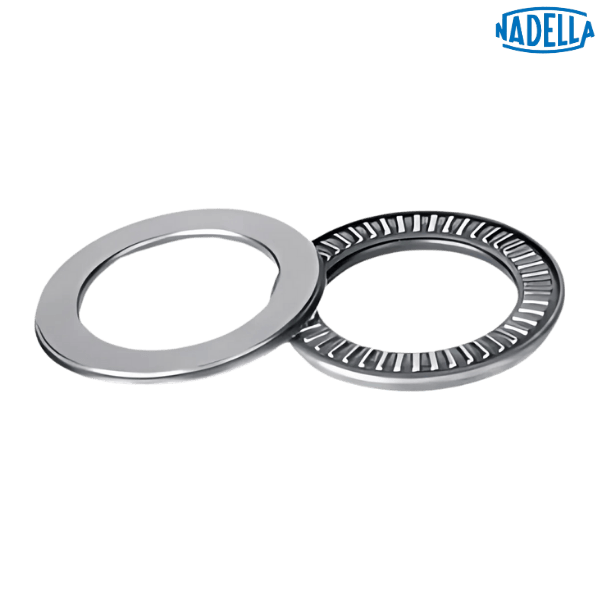

♦ ♦ Images are for representation purposes only
