AXZ 5.5 6 14 NADELLA

Brand - NADELLA
Item Number - AXZ 5.5 6 14 NADELLA
Category - Needle Thrust Bearing with Thrust Plate

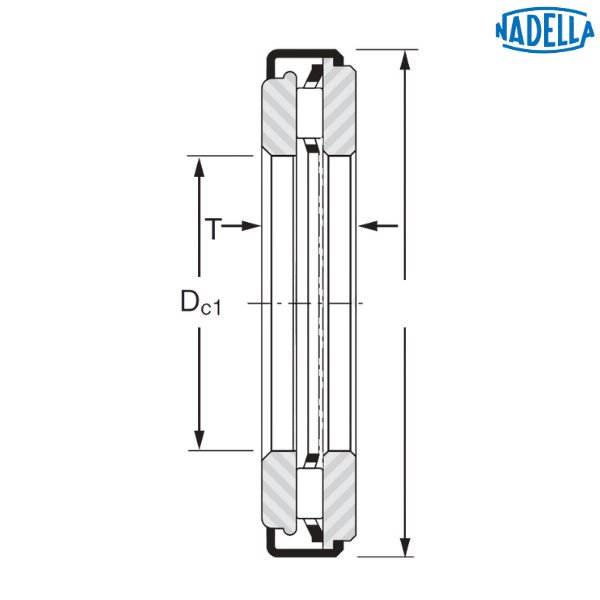

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 6 mm
Inner Diameter (d) - 6 mm
Outer Diameter (D) - 14 mm
Width (T) - 5.5 mm
Dynamic Load Rating (C) - 3.15 kN
Static Load Rating (C0) - 6.35 kN
Speed Limit with Oil - 22000 rpm
Weight - 0.004 kg

Description of Prefix :
AXZ - Needle thrust bearing with retained plate
