Description
Brand - NADELLA
Item Number - AXZ 5.5 5 13 NADELLA
Category - Needle Thrust Bearing with Thrust Plate

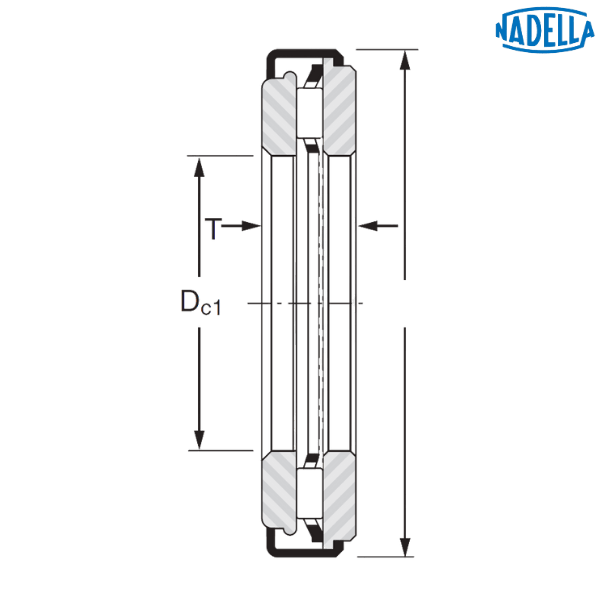

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 5 mm
Inner Diameter (d) - 5 mm
Outer Diameter (D) - 13 mm
Width (T) - 5.5 mm
Dynamic Load Rating (C) - 3 kN
Static Load Rating (C0) - 5.7 kN
Speed Limit with Oil - 25000 rpm
Weight - 0.004 kg
Description of Prefix :
AXZ - Needle thrust bearing with retained plate
♦ ♦ Images are for representation purposes only
