Description
Brand - NADELLA
Item Number - AXZ 10 80 106 NADELLA

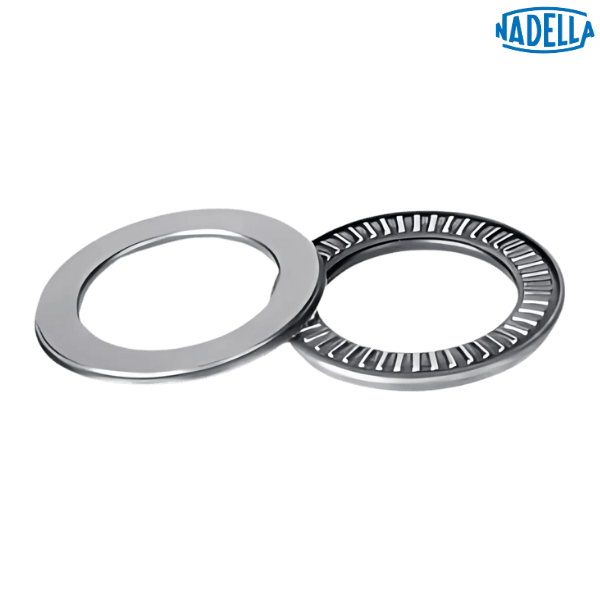

Category - Needle Thrust Bearing with Thrust Plate

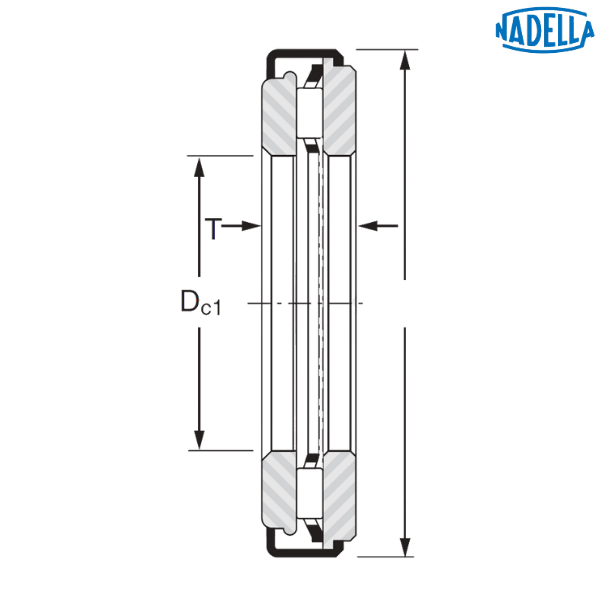

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 80 mm
Inner Diameter (d) - 80 mm
Outer Diameter (D) - 106 mm
Width (T) - 10 mm
Dynamic Load Rating (C) - 36.5 kN
Static Load Rating (C0) - 253 kN
Speed Limit with Oil - 2700 rpm
Weight - 0.256 kg
Description of Prefix :
AXZ - Needle thrust bearing with retained plate
♦ ♦ Images are for representation purposes only
Item Number - AXZ 10 80 106 NADELLA
Category - Needle Thrust Bearing with Thrust Plate
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 80 mm
Inner Diameter (d) - 80 mm
Outer Diameter (D) - 106 mm
Width (T) - 10 mm
Dynamic Load Rating (C) - 36.5 kN
Static Load Rating (C0) - 253 kN
Speed Limit with Oil - 2700 rpm
Weight - 0.256 kg
Description of Prefix :
AXZ - Needle thrust bearing with retained plate
♦ ♦ Images are for representation purposes only
