AXZ 10 70 96 NADELLA

Brand - NADELLA
Item Number - AXZ 10 70 96 NADELLA

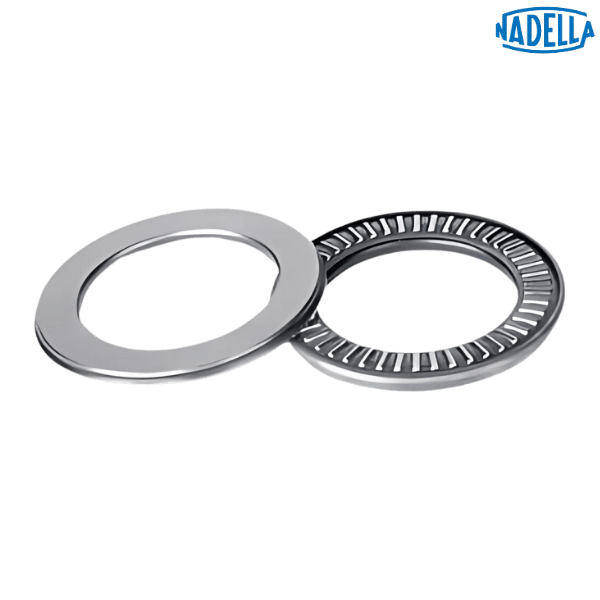

Category - Needle Thrust Bearing with Thrust Plate

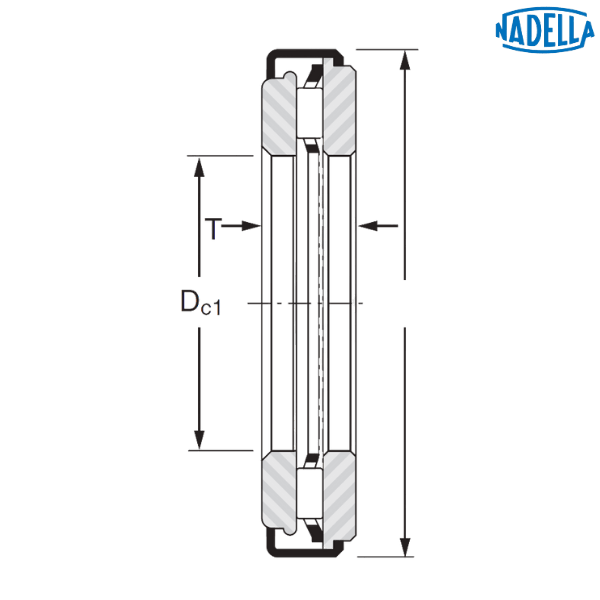

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 70 mm
Inner Diameter (d) - 70 mm
Outer Diameter (D) - 96 mm
Width (T) - 10 mm
Dynamic Load Rating (C) - 34.5 kN
Static Load Rating (C0) - 223 kN
Speed Limit with Oil - 3000 rpm
Weight - 0.22 kg

Description of Prefix :
AXZ - Needle thrust bearing with retained plate

♦ ♦ Images are for representation purposes only
