AXZ 10 60 86 NADELLA

Brand - NADELLA
Item Number - AXZ 10 60 86 NADELLA

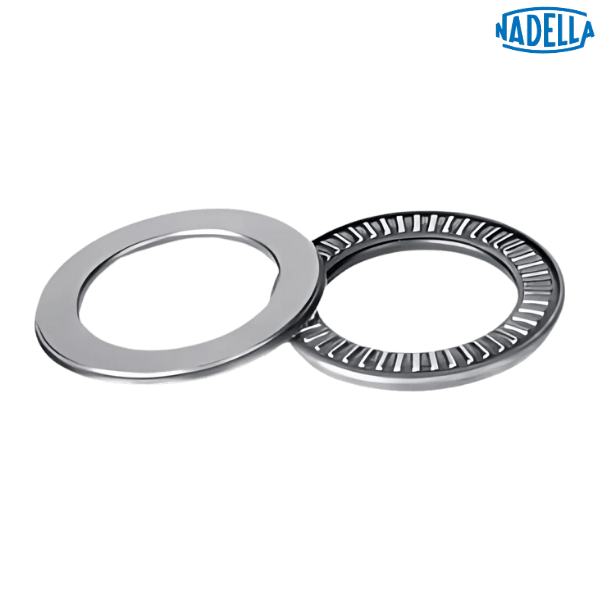

Category - Needle Thrust Bearing with Thrust Plate

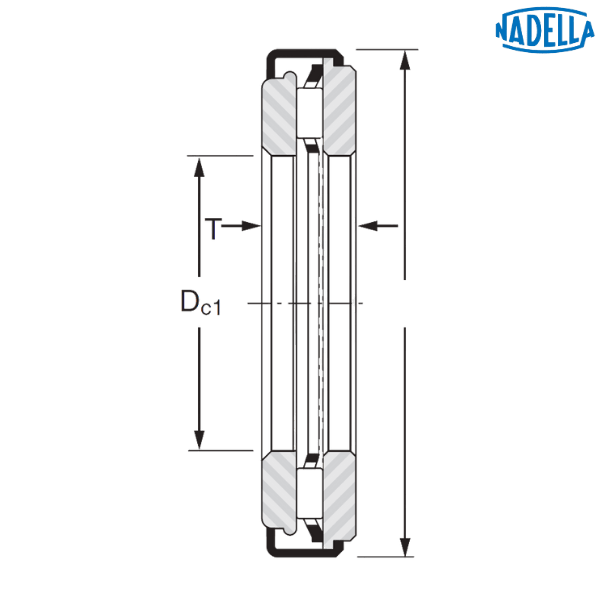

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 60 mm
Inner Diameter (d) - 60 mm
Outer Diameter (D) - 86 mm
Width (T) - 10 mm
Dynamic Load Rating (C) - 31.5 kN
Static Load Rating (C0) - 193 kN
Speed Limit with Oil - 3500 rpm
Weight - 0.194 kg

Description of Prefix :
AXZ - Needle thrust bearing with retained plate

♦ ♦ Images are for representation purposes only
